IC201-0644-003 - Yamaichi

Description: IC & Component Sockets 64 pins 0.5mm pitch Test & Burn-in Socket

Download IC201-0644-003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IC201-0644-003 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

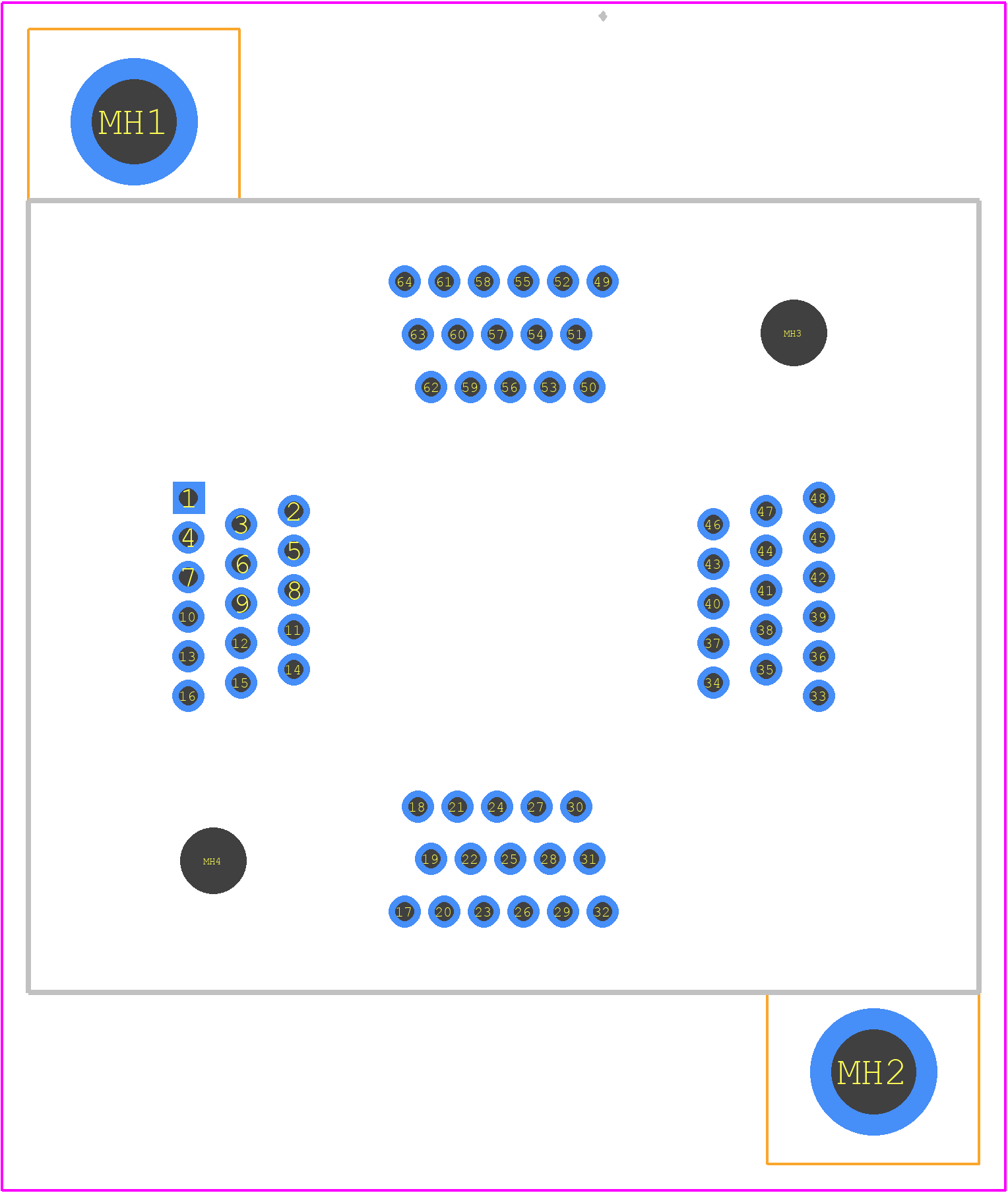

IC201-0644-003 - Yamaichi PCB footprint - Other - Other - IC201-0644-003-3
click to zoom
3D Models
IC201-0644-003 - Yamaichi - 3D model - Other - IC201-0644-003-3
click to zoom

IC201-0644-003 Details

  • Manufacturer Part Number:

    IC201-0644-003

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    WITHOUT PROTECTION KEY

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    QFP64

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYETHERIMIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.02 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    64

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Terminal Pitch:

    1.4986 mm

  • Termination Type:

    SOLDER

IC201-0644-003 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of IC201-0644-003 is 0.5 N·m to 1.5 N·m, as specified by Yamaichi Electronics Co Ltd.
  • Yes, the IC201-0644-003 is designed to withstand vibrations up to 10 G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications.
  • Yes, the IC201-0644-003 is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
  • The operating temperature range of the IC201-0644-003 is -40°C to 105°C, making it suitable for use in a wide range of applications.
  • The IC201-0644-003 has a moisture-resistant design and can operate in humid or wet environments, but it is not designed for immersion in water or exposure to extreme moisture.
