The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m. It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the IC201-1004-008 is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection. Consult the manufacturer's guidelines for specific vibration testing and certification.
The IC201-1004-008 operates within a temperature range of -40°C to 105°C. However, it's essential to note that the connector's performance and lifespan may be affected by extreme temperatures, so it's crucial to consider the specific application and environmental conditions.
The IC201-1004-008 is rated for a maximum current of 3A per contact. While it can handle moderate current levels, it's not recommended for high-current applications. For high-current requirements, consider using a connector with a higher current rating or consulting with the manufacturer for custom solutions.
The IC201-1004-008 has a moisture-resistant design, but it's not fully waterproof. While it can withstand some humidity, it's not recommended for submerged or high-humidity applications. For such environments, consider using connectors with IP67 or higher ratings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IC201-1004-008 Overview

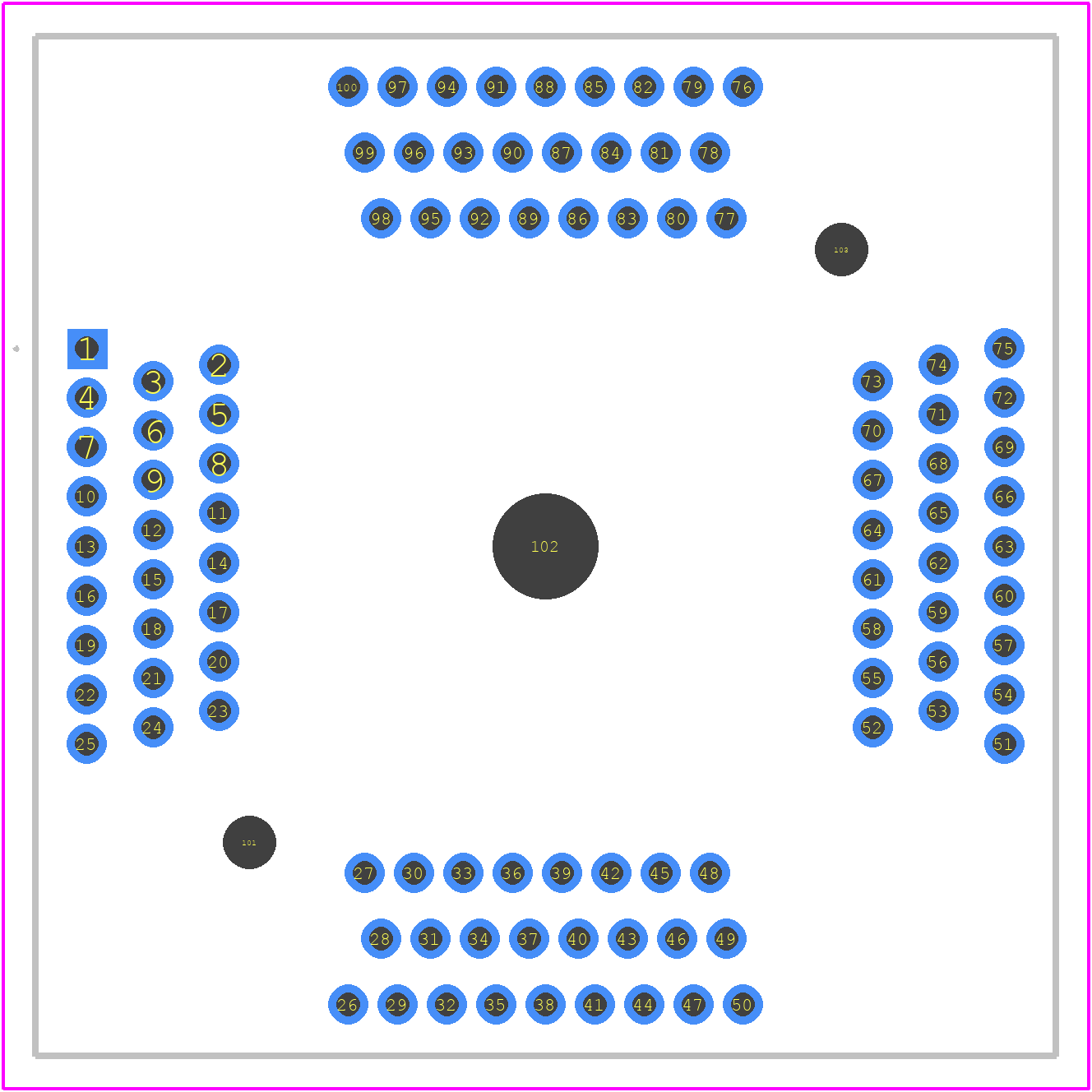

Use the download button to access the IC201-1004-008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IC201,
or try a keyword search, such as Sockets and Chip Carriers
