IC37NRB-2004-G4 - Yamaichi

IC37NRB-2004-G4 Details

• Manufacturer Part Number:

  IC37NRB-2004-G4

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Yamaichi Electronics Co Ltd

• YTEOL:

  7

• Body Breadth:

  0.768 inch

• Body Depth:

  0.571 inch

• Body Length:

  1.089 inch

• Contact Configuration:

  RECTANGLE

• Contact Style:

  BELLOWED TYPE

• Device Socket Type:

  IC SOCKET

• Device Type Used On:

  DIP20

• Dielectric Withstanding Voltage:

  700VAC V

• Housing Material:

  POLYPHENYLENE SULFIDE

• Insulation Resistance:

  1000000000 Ω

• Mating Contact Pitch:

  0.1 inch

• Mounting Style:

  STRAIGHT

• Number of Contacts:

  20

• Operating Temperature-Max:

  170 °C

• Operating Temperature-Min:

  -40 °C

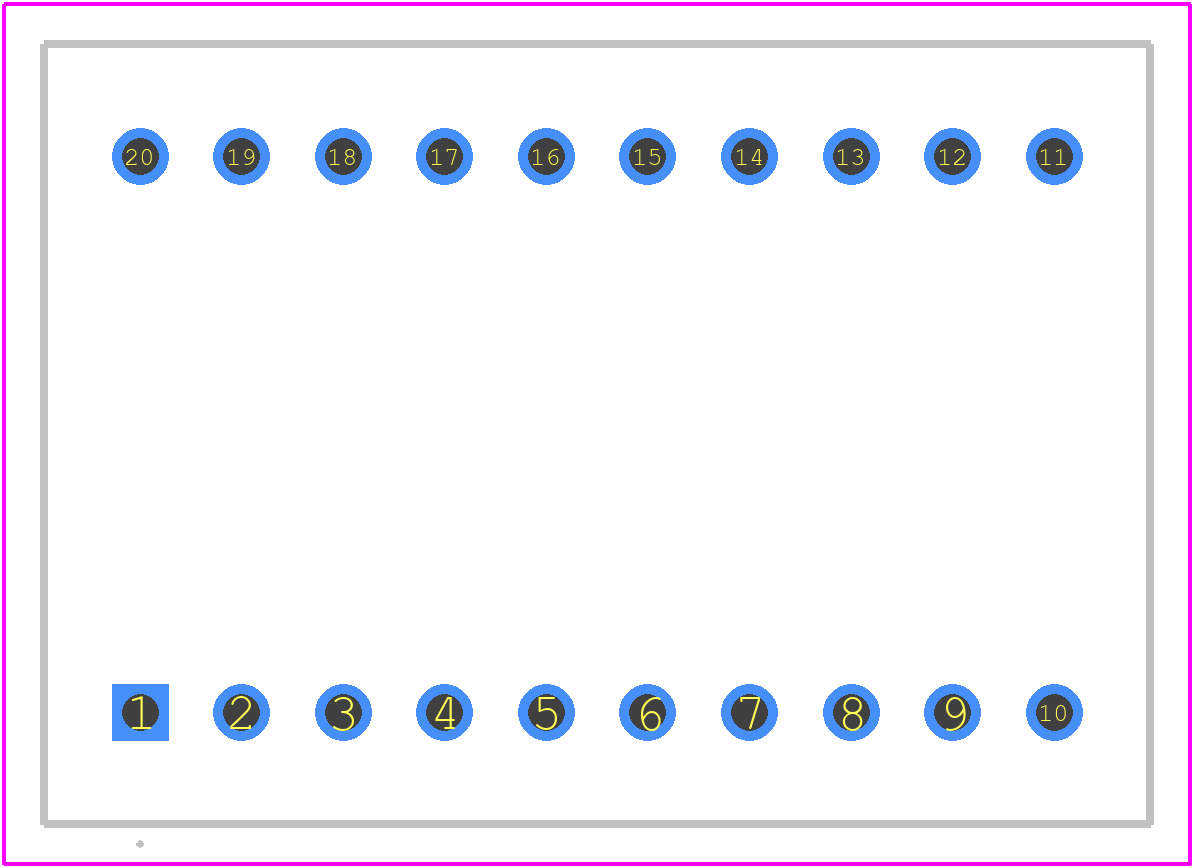

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  0.547244094488189 mm

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER
