IC51-0202-779 - Yamaichi

Description: IC & Component Sockets 20 PIN SOP 0.65 MM PITCH -55°C ~ 170°C

Download IC51-0202-779 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IC51-0202-779 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

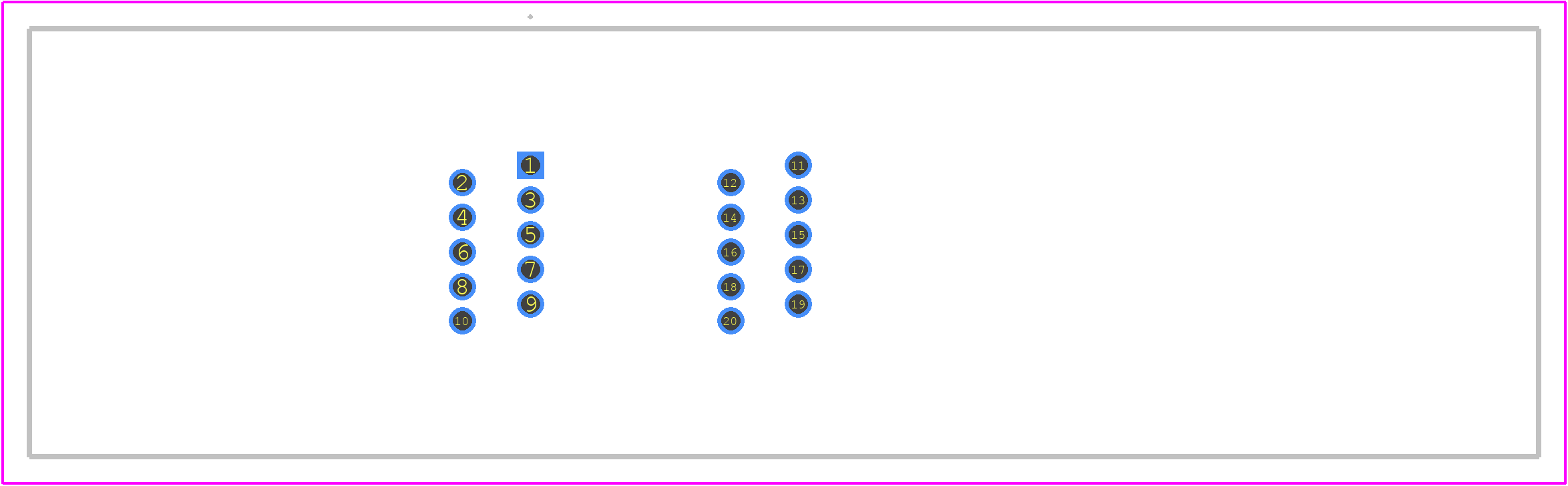

IC51-0202-779 - Yamaichi PCB footprint - Other - Other - IC51-0202-779
click to zoom
3D Models
IC51-0202-779 - Yamaichi - 3D model - Other - IC51-0202-779
click to zoom

IC51-0202-779 Details

  • Manufacturer Part Number:

    IC51-0202-779

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    WITH FLOATING BASE

  • Body Breadth:

    0.173 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    SSOP20

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYETHERSULFONE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.026 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Row Spacing:

    0.1/0.29488188976377955 mm

  • Terminal Pitch:

    1.2954 mm

  • Termination Type:

    SOLDER

IC51-0202-779 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of IC51-0202-779 is 0.5 N·m to 1.5 N·m, as specified by Yamaichi Electronics Co Ltd.
  • Yes, the IC51-0202-779 is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, making it suitable for use in high-vibration environments.
  • Yes, the IC51-0202-779 is compatible with lead-free soldering, with a recommended soldering temperature of 260°C (500°F) for 10 seconds or less.
  • The operating temperature range for the IC51-0202-779 is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • The IC51-0202-779 has a moisture resistance rating of IP67, meaning it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for continuous use in wet environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IC51-0202-779 Overview

Use the download button to access the IC51-0202-779 schematic symbol, PCB footprint, and 3D model.
