IC51-0444-400 - Yamaichi

Description: PLCC TEST SOCKET 44 WAY Yamaichi 1.27mm Pitch Female PLCC Socket, 44 Way, Through Hole, Gold over Nickel Plated Contacts 1A

Download IC51-0444-400 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

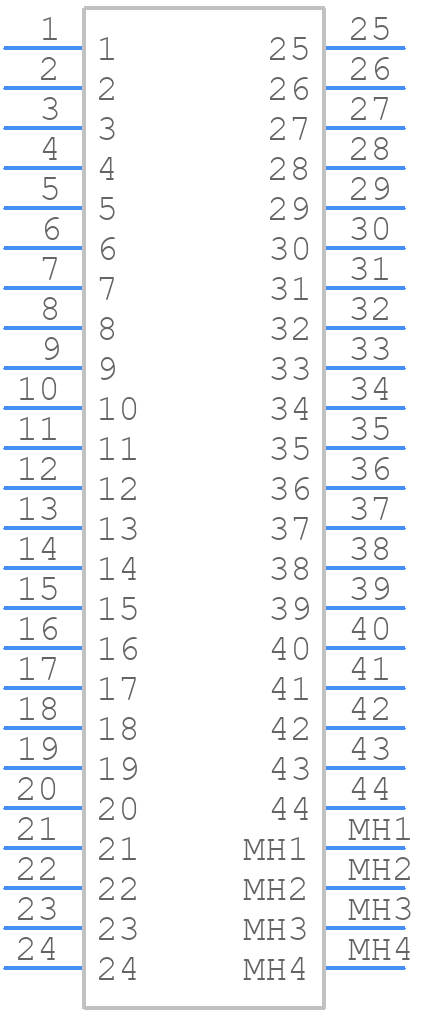

IC51-0444-400 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

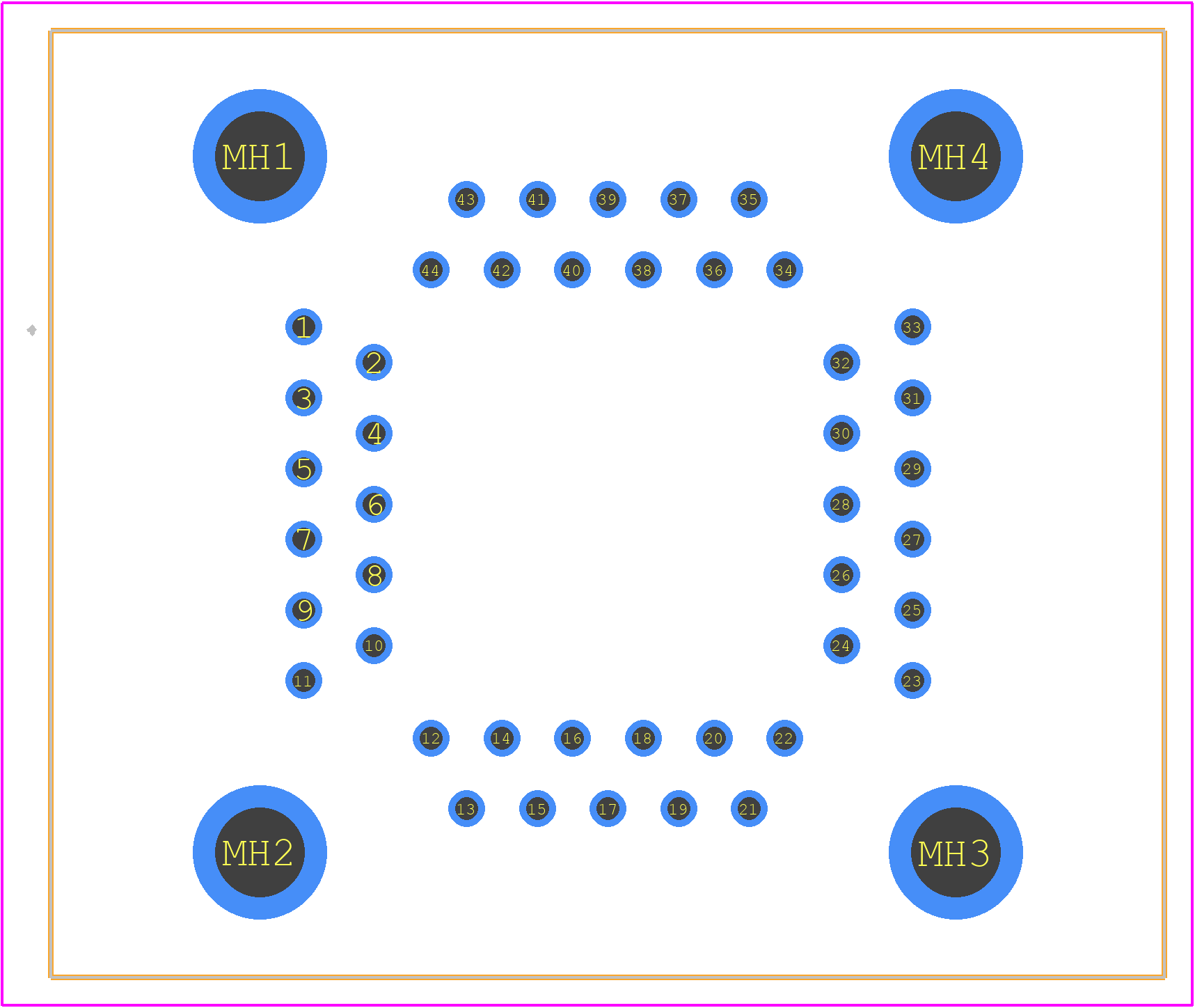

IC51-0444-400 - Yamaichi PCB footprint - Other - Other - IC51-0444-400-5
click to zoom
3D Models
IC51-0444-400 - Yamaichi - 3D model - Other - IC51-0444-400-5
click to zoom

IC51-0444-400 Details

  • Manufacturer Part Number:

    IC51-0444-400

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    WITH CLAMSHELL

  • Body Breadth:

    1.339 inch

  • Body Depth:

    0.787 inch

  • Body Length:

    1.575 inch

  • Contact Configuration:

    11X11

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC44

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYETHERIMIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    44

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SOLDER

IC51-0444-400 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the manufacturer's application notes.
  • Yes, the IC51-0444-400 is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
  • The operating temperature range for the IC51-0444-400 is -40°C to 105°C, making it suitable for use in a wide range of applications.
  • Yes, the IC51-0444-400 is compatible with lead-free soldering processes, making it suitable for use in modern manufacturing environments.
  • The mating cycle rating for the IC51-0444-400 is 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IC51-0444-400 Overview

Use the download button to access the IC51-0444-400 schematic symbol, PCB footprint, and 3D model.
