IC51-0804-808 - Yamaichi

Description: IC & Component Sockets 80 PIN QFP 0.50 MM PITCH

Download IC51-0804-808 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IC51-0804-808 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

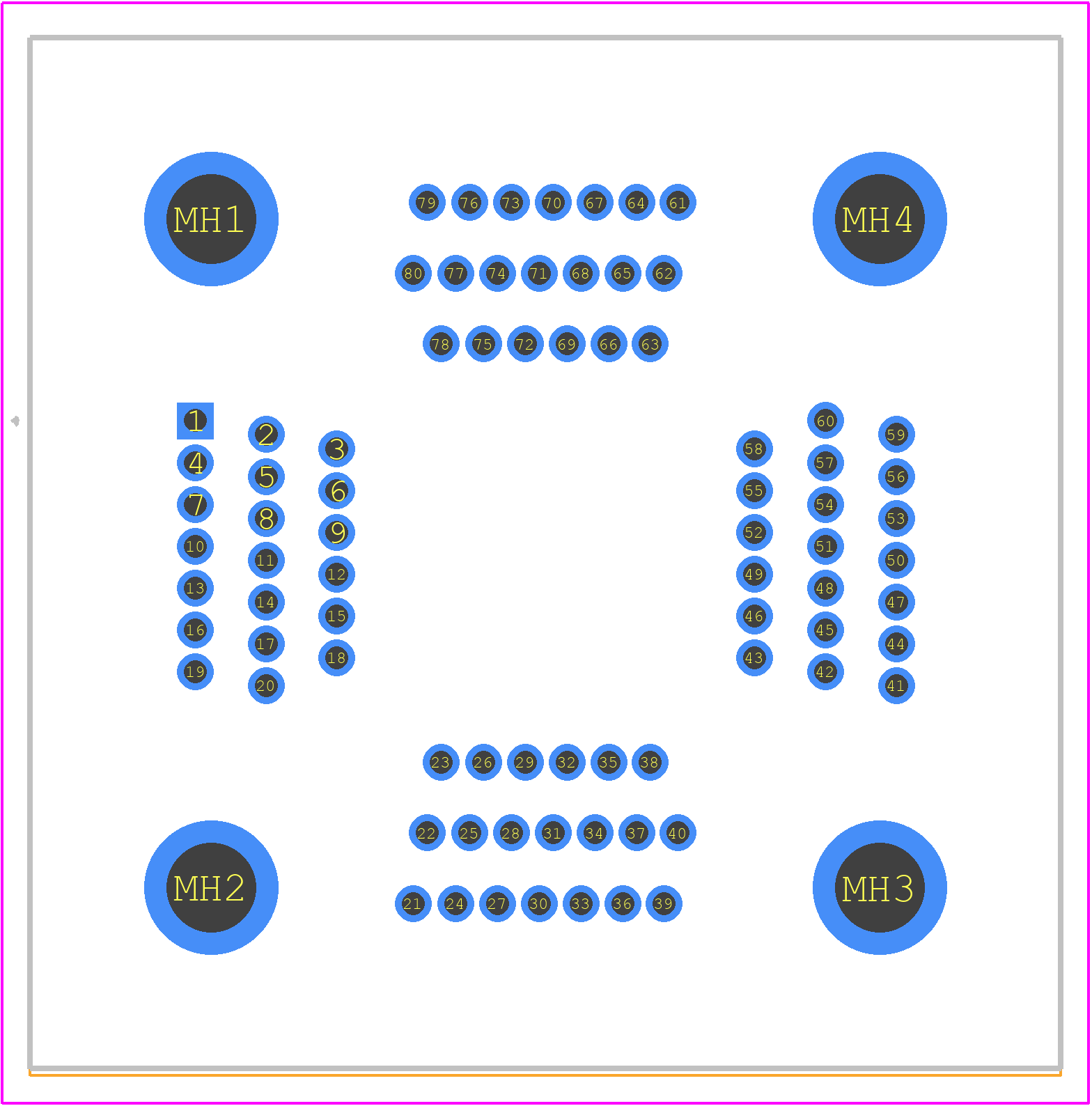

IC51-0804-808 - Yamaichi PCB footprint - Other - Other - IC51-0804-808-1
click to zoom
3D Models
IC51-0804-808 - Yamaichi - 3D model - Other - IC51-0804-808-1
click to zoom

IC51-0804-808 Details

  • Manufacturer Part Number:

    IC51-0804-808

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Additional Feature:

    WITH FLOATING BASE

  • Body Breadth:

    0.472 inch

  • Body Length:

    0.472 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    QFP80

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYSULPHONE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.02 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    80

  • PCB Contact Pattern:

    STAGGERED

  • Terminal Pitch:

    1.4986 mm

  • Termination Type:

    SOLDER

IC51-0804-808 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m. It's essential to follow this range to ensure reliable connections and prevent damage to the terminals.
  • Yes, the IC51-0804-808 is designed to withstand vibrations up to 10 G (10-2000 Hz) according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure connections to maintain reliability in high-vibration environments.
  • The operating temperature range for IC51-0804-808 is -40°C to 105°C. It's essential to operate within this range to ensure reliable performance and prevent damage to the component.
  • Yes, IC51-0804-808 is compatible with lead-free soldering processes. The component is designed to withstand the higher temperatures required for lead-free soldering, ensuring reliable connections and minimizing the risk of damage.
  • It's recommended to store IC51-0804-808 in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. This helps prevent moisture absorption and ensures the component remains reliable and functional.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IC51-0804-808 Overview

Use the download button to access the IC51-0804-808 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IC51-, or try a keyword search, such as Sockets and Chip Carriers
