IC51-0804-956-2 - Yamaichi

Description: Yamaichi 0.65mm Pitch 80 Way SMT QFP Test Sockets

Download IC51-0804-956-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IC51-0804-956-2 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

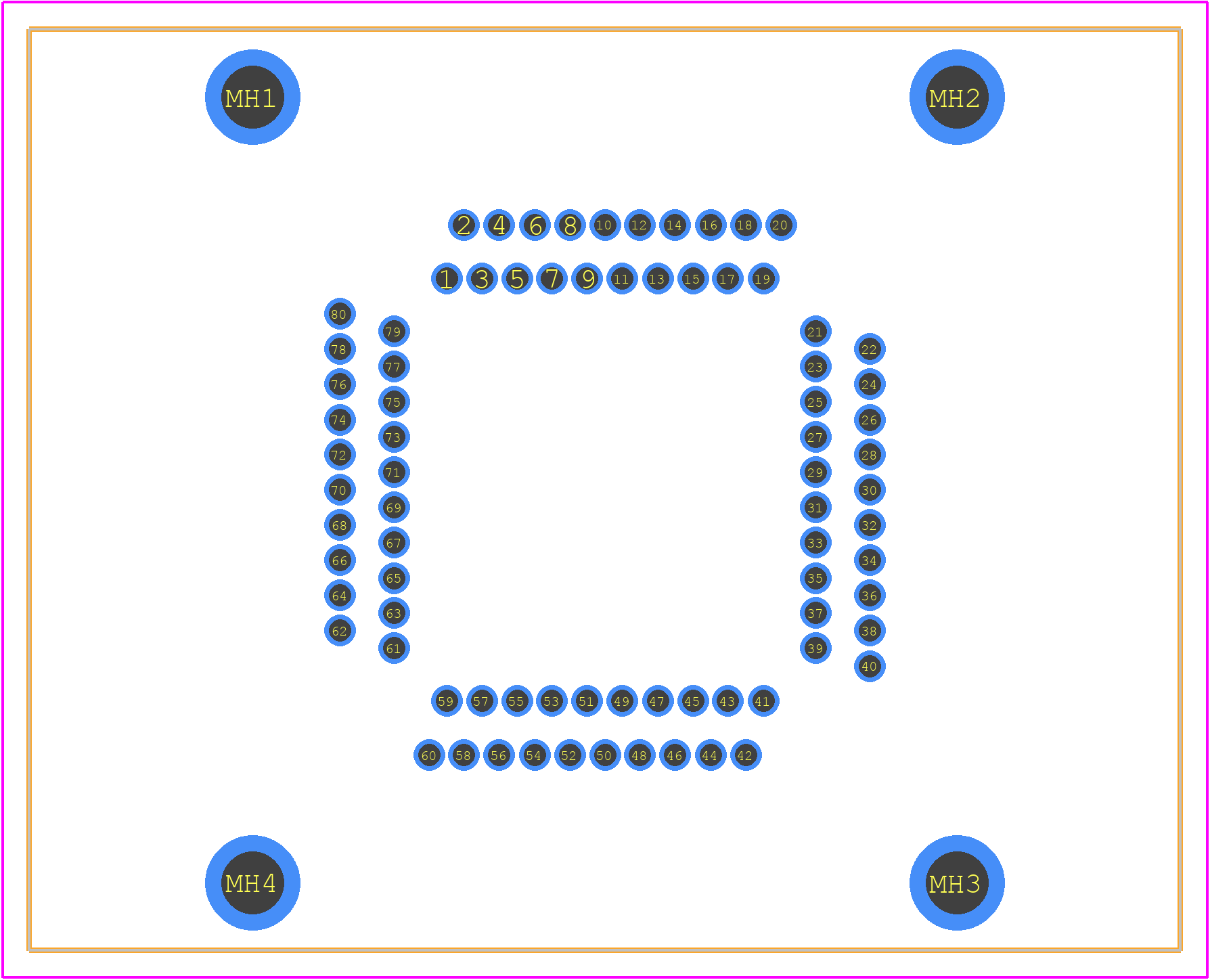

IC51-0804-956-2 - Yamaichi PCB footprint - Other - Other - IC51-0804-956-2-2
click to zoom
3D Models
IC51-0804-956-2 - Yamaichi - 3D model - Other - IC51-0804-956-2-2
click to zoom

IC51-0804-956-2 Details

  • Manufacturer Part Number:

    IC51-0804-956-2

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Body Breadth:

    0.551 inch

  • Body Length:

    0.551 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    QFP80

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYSULPHONE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.026 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    80

  • PCB Contact Pattern:

    STAGGERED

  • Terminal Pitch:

    1.2954 mm

  • Termination Type:

    SOLDER

IC51-0804-956-2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for IC51-0804-956-2 is -40°C to 85°C, but it's always best to check with Yamaichi Electronics Co Ltd for specific guidance on temperature-related specifications.
  • Yes, IC51-0804-956-2 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The typical lead time for IC51-0804-956-2 can vary depending on the quantity, region, and availability. It's best to check with Yamaichi Electronics Co Ltd or an authorized distributor for the most up-to-date lead time information.
  • While IC51-0804-956-2 is designed to be reliable, it's essential to evaluate its performance in high-vibration applications. Yamaichi Electronics Co Ltd may provide additional guidance or testing data to support such use cases.
  • Yes, IC51-0804-956-2 is compatible with Pb-free soldering processes, making it suitable for modern manufacturing environments that require lead-free soldering.
