Part Image

IC51-1004-814-13 - Yamaichi

Description: QFP100, IC SOCKET

Download IC51-1004-814-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

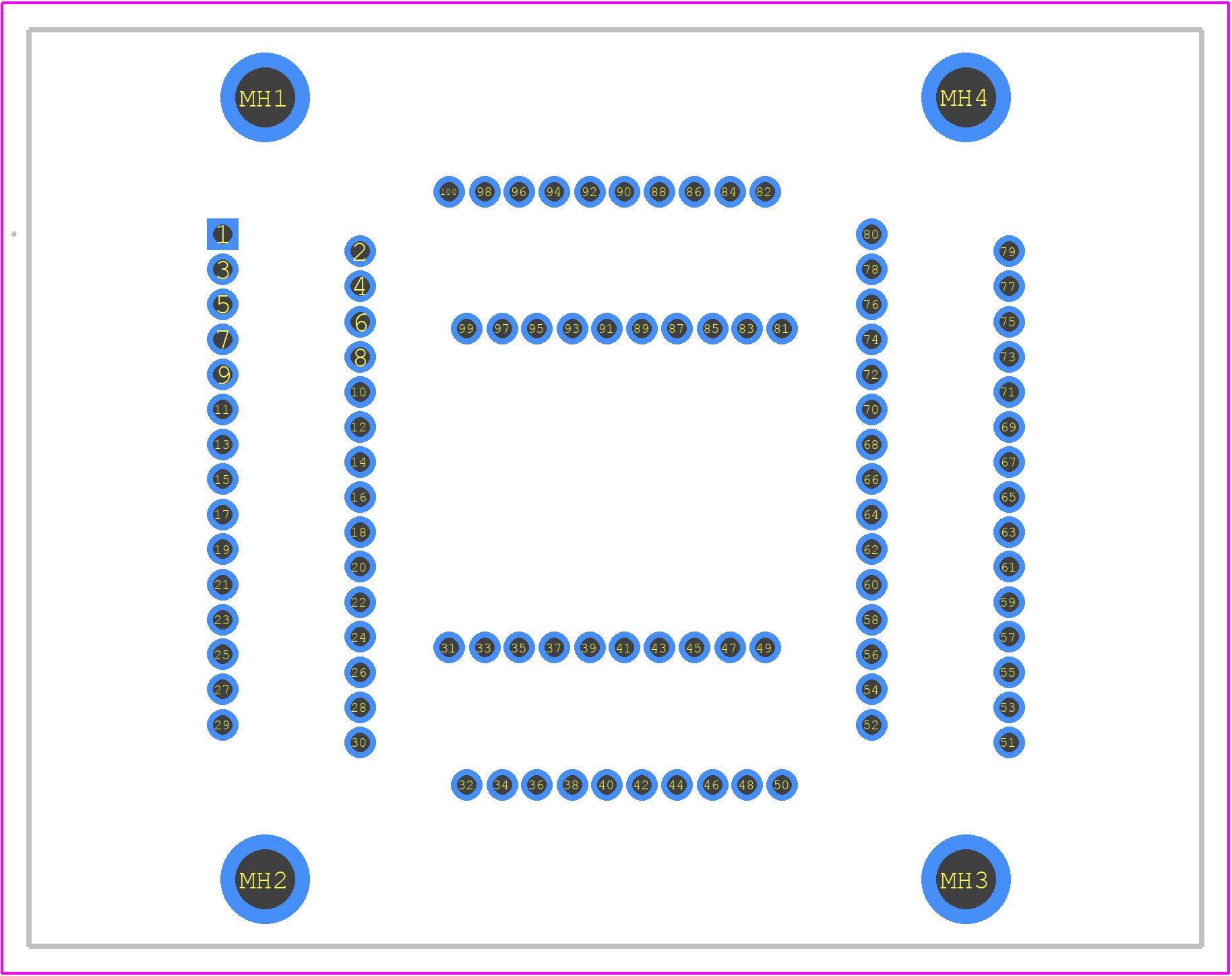

IC51-1004-814-13 - Yamaichi PCB footprint - Other - Other - IC51-1004-814-13-3
click to zoom
3D Models
IC51-1004-814-13 - Yamaichi  - 3D model - Other - IC51-1004-814-13-3
click to zoom

IC51-1004-814-13 Details

  • Manufacturer Part Number:

    IC51-1004-814-13

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Body Breadth:

    0.551 inch

  • Body Length:

    0.787 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BE-CU

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    QFP100

  • Dielectric Withstanding Voltage:

    700VAC V

  • Housing Material:

    POLYSULPHONE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.026 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    100

  • PCB Contact Pattern:

    STAGGERED

  • Terminal Pitch:

    1.2954 mm

  • Termination Type:

    SOLDER

IC51-1004-814-13 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the manufacturer's application notes.
  • Yes, the IC51-1004-814-13 is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration, as per the manufacturer's reliability testing.
  • The IC51-1004-814-13 is rated for operation in temperatures ranging from -40°C to 105°C and humidity up to 90% RH, making it suitable for use in harsh environments.
  • The IC51-1004-814-13 has a mating cycle life of 500 cycles, as specified in the manufacturer's reliability testing.
  • Yes, the IC51-1004-814-13 is designed to accommodate cables with gauges ranging from AWG 24 to AWG 20, but it's recommended to consult the manufacturer's application notes for specific guidance.
