ICA-314-SGG footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

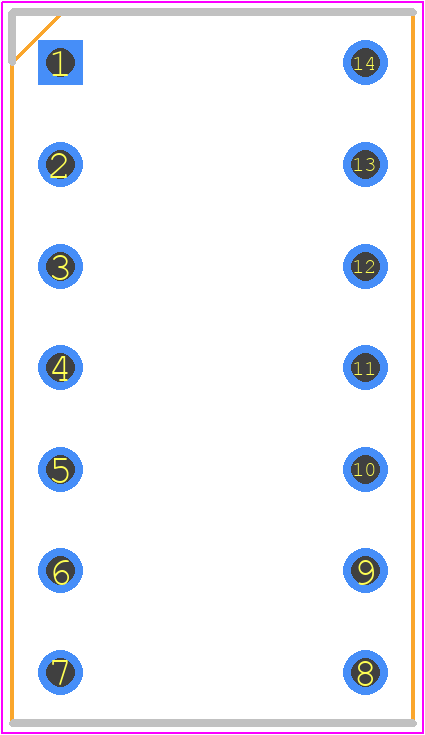

PCB Footprints

ICA-314-SGG - SAMTEC PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - ICA-314-SGG

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ICA-314-SGG
Part Number ICA-314-SGG
Manufacturer SAMTEC
Pin Count 14
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - ICA-314-SGG
Released Date Jun 23, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ICA-314-SGG Details

Manufacturer Part Number:
ICA-314-SGG
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
0
Additional Feature:
STANDARD: UL 94V-0
Body Breadth:
0.395 inch
Body Depth:
0.1 inch
Body Length:
0.7 inch
Contact Configuration:
RECTANGLE
Contact Finish Mating:
GOLD (30) OVER NICKEL (50)
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Material:
NOT SPECIFIED
Contact Style:
RND PIN-SKT
Current Rating:
1 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP14
Dielectric Withstanding Voltage:
1400VAC V
Housing Material:
POLYESTER
Insulation Resistance:
5000000000 Ω
JESD-609 Code:
e4
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.30000000000000004 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

ICA-314-SGG Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ICA-314-SGG connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the ICA-314-SGG connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the ICA-314-SGG connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The ICA-314-SGG connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for such applications.
The mating cycle life of the ICA-314-SGG connector is 500 cycles minimum according to Samtec's datasheet. However, this can vary depending on the application and environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

ICA-314-SGG Overview

Use the download button to access the ICA-314-SGG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ICA-3, or try a keyword search, such as Sockets and Chip Carriers
