ICA-314-SGT - SAMTEC

ICA-314-SGT Details

• Manufacturer Part Number:

  ICA-314-SGT

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  2 Weeks, 1 Day

• Manufacturer:

  Samtec Inc

• YTEOL:

  0

• Additional Feature:

  STANDARD: UL 94V-0

• Body Breadth:

  0.395 inch

• Body Depth:

  0.1 inch

• Body Length:

  0.7 inch

• Contact Configuration:

  RECTANGLE

• Contact Finish Mating:

  GOLD (30) OVER NICKEL (50)

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Material:

  NOT SPECIFIED

• Contact Style:

  RND PIN-SKT

• Current Rating:

  1 A

• Device Socket Type:

  IC SOCKET

• Device Type Used On:

  DIP14

• Dielectric Withstanding Voltage:

  1400VAC V

• Housing Material:

  POLYESTER

• Insulation Resistance:

  5000000000 Ω

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mounting Style:

  STRAIGHT

• Number of Contacts:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

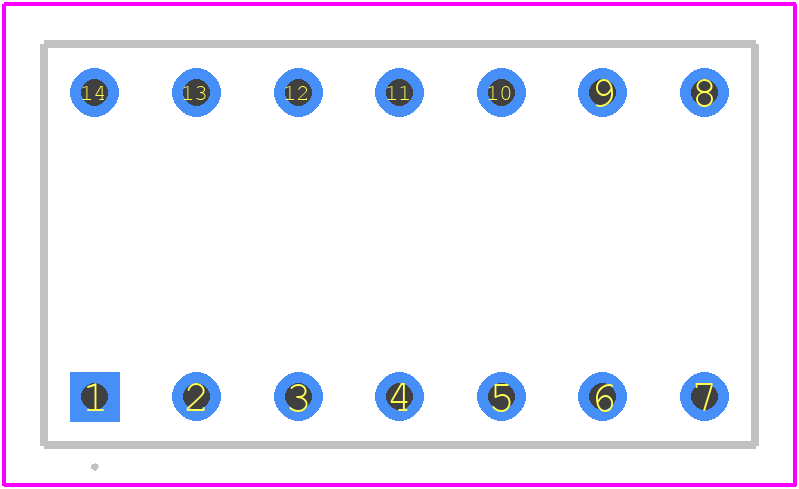

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  0.30000000000000004 mm

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER
