ICE1HS01G1XUMA1 - Infineon

Description: AC/DC Converters Half-Bridge Res Cntlr 18V 600 kHz

Download ICE1HS01G1XUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

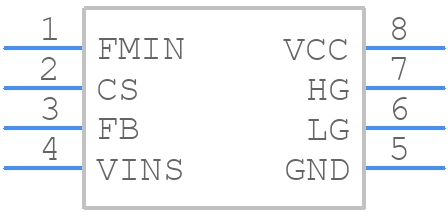

ICE1HS01G1XUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
ICE1HS01G1XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO 8+
click to zoom
3D Models
ICE1HS01G1XUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO 8+
click to zoom

ICE1HS01G1XUMA1 Details

  • Manufacturer Part Number:

    ICE1HS01G1XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    10.2 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    609 kHz

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ICE1HS01G1XUMA1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure efficient heat dissipation.
  • Ensure proper thermal management by providing adequate heat sinking and airflow. Also, consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher for input and output capacitors. The recommended capacitance values are 10uF to 22uF for input and 10uF to 47uF for output.
  • Check the OCP threshold setting and ensure it is within the recommended range. Verify that the sense resistor is properly connected and sized correctly. Also, check for any voltage drops or noise on the sense lines.
  • Yes, the ICE1HS01G1XUMA1 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within its recommended operating conditions and that the system design meets the required safety and reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICE1HS01G1XUMA1 Overview

Use the download button to access the ICE1HS01G1XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICE1H, or try a keyword search, such as Switching Regulator or Controllers
