ICE2B265 - Infineon

Description: AC/DC Converters COOLSET IC CUR-MODE PWM CTRLR 650V

Download ICE2B265 Model

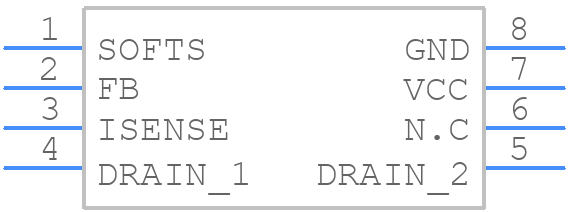

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE2B265 - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PG-DIP-82
click to zoom
3D Models
ICE2B265 - Infineon  - 3D model - Dual-In-Line Packages - PG-DIP-82
click to zoom

ICE2B265 Details

  • Manufacturer Part Number:

    ICE2B265

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    21 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.52 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.37 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    72 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ICE2B265 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to ensure good heat dissipation.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider using a thermistor or a temperature sensor to monitor the device temperature.
  • The maximum allowed voltage on the VIN pin is 28V, but it's recommended to keep it below 24V for reliable operation.
  • Use a common-mode choke, add a shielded cable, and ensure the output filter components are placed close to the device. Also, consider adding a snubber circuit to reduce EMI.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin and the GND pin.
