ICE3B1565J - Infineon

Description: AC/DC Converters Off-Line SMPS Currnt Mode CTRLR 650V

Download ICE3B1565J Model

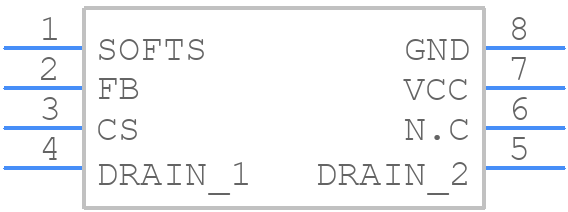

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE3B1565J - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PG-DIP-8
click to zoom
3D Models
ICE3B1565J - Infineon  - 3D model - Dual-In-Line Packages - PG-DIP-8
click to zoom

ICE3B1565J Details

  • Manufacturer Part Number:

    ICE3B1565J

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8-6

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    10.3 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.52 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.37 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    76 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

ICE3B1565J Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the device's junction temperature (Tj) and adjust the design accordingly.
  • Monitor the output voltage, current, and temperature. Implement overvoltage protection (OVP), undervoltage protection (UVP), and overcurrent protection (OCP) to prevent damage and ensure reliable operation.
  • Use a shielded enclosure, keep the layout compact, and minimize loop areas. Use a common-mode choke and a Y-capacitor to reduce EMI. Follow the recommended layout guidelines and use a 4-layer PCB with a solid ground plane.
  • Use low-ESR capacitors with a high ripple current rating. For the input capacitor, a 10uF to 22uF ceramic or film capacitor is recommended. For the output capacitor, a 10uF to 47uF ceramic or electrolytic capacitor is recommended.
