ICE5AR0680BZSXKLA1 - Infineon

Description: Converter Offline Flyback Topology 100kHz PG-DIP-7

Download ICE5AR0680BZSXKLA1 Model
Schematic

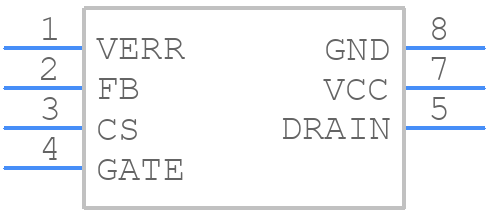

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE5AR0680BZSXKLA1 - Infineon PCB footprint - Other - Other - PG-DIP-7
click to zoom
3D Models
ICE5AR0680BZSXKLA1 - Infineon  - 3D model - Other - PG-DIP-7
click to zoom

ICE5AR0680BZSXKLA1 Details

  • Manufacturer Part Number:

    ICE5AR0680BZSXKLA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8/7

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • Analog IC - Other Type:

    SWITCHING CONTROLLER
