ICE5AR4770BZSXKLA1 - Infineon

Description: Switching Controllers COOLSET (INCL. GEN5)

Download ICE5AR4770BZSXKLA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

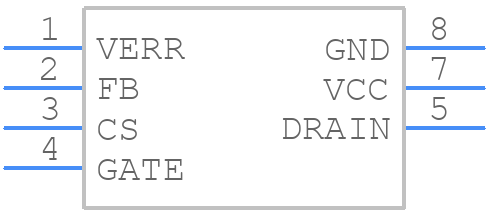

ICE5AR4770BZSXKLA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
ICE5AR4770BZSXKLA1 - Infineon PCB footprint - Other - Other - ICE5AR4770BZSXKLA1-2
click to zoom
3D Models
ICE5AR4770BZSXKLA1 - Infineon - 3D model - Other - ICE5AR4770BZSXKLA1-2
click to zoom

ICE5AR4770BZSXKLA1 Details

  • Manufacturer Part Number:

    ICE5AR4770BZSXKLA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8/7

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDIP-T8/7

  • Length:

    9.435 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    108 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ICE5AR4770BZSXKLA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider using a heat sink with a thermal resistance of ≤ 10°C/W.
  • The recommended input capacitance value is 10 μF to 22 μF, with an X7R or X5R dielectric, and a voltage rating of 25 V or higher.
  • Use an oscilloscope to monitor the input and output voltages, and check for proper pin connections. Also, verify that the input voltage is within the recommended range and that the device is properly cooled.
  • Yes, the ICE5AR4770BZSXKLA1 is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICE5AR4770BZSXKLA1 Overview

Use the download button to access the ICE5AR4770BZSXKLA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICE5A, or try a keyword search, such as Switching Regulator or Controllers
