Infineon provides a reference design and layout guidelines in the application note AN-1171. It's essential to follow these guidelines to ensure proper thermal management and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input voltage, output voltage, and output current. Infineon recommends using X7R or X5R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of 1.5 times the input voltage. Refer to the application note AN-1171 for more details.
The maximum allowed voltage drop across the input capacitors is 10% of the input voltage. Exceeding this limit can lead to reduced performance, increased EMI, and decreased reliability.
Implement a proper thermal management system, including a heat sink, thermal interface material, and a well-designed PCB layout. Monitor the TJ using the internal temperature sensor or an external temperature monitoring system.
Infineon recommends using a PCB material with a high thermal conductivity, such as FR4 or IMS, with a thickness of 1.6 mm or more. This helps to dissipate heat effectively and reduce thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICE5GR2280AGXUMA1 Overview

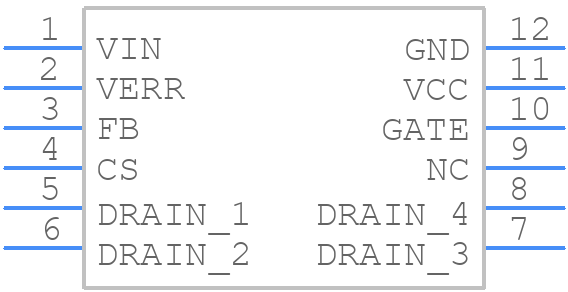

Use the download button to access the ICE5GR2280AGXUMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ICE5G,
or try a keyword search, such as Other Signal Circuits
