ICE5QR1680AGXUMA1 footprint, schematic symbol and 3D model by Infineon

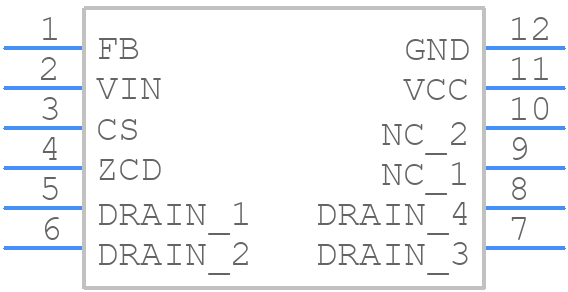

Symbol

click to zoom

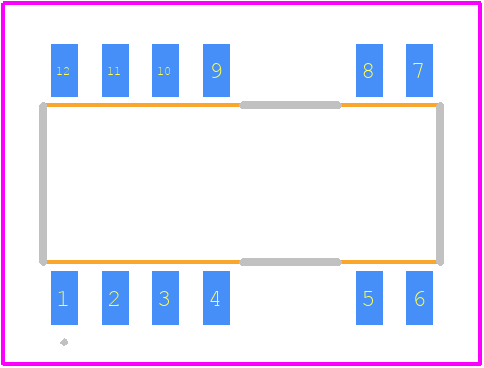

PCB Footprints

ICE5QR1680AGXUMA1 - Infineon PCB footprint - Other - Other - PG-DSO-12_2024-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ICE5QR1680AGXUMA1
Part Number ICE5QR1680AGXUMA1
Manufacturer Infineon
Pin Count 12
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PG-DSO-12_2024-1
Released Date Oct 13, 2024
Last Modified Date Oct 13, 2024 10:47 AM UTC
Pinout / Pin List Click Here (Member Only)

ICE5QR1680AGXUMA1 Details

Manufacturer Part Number:
ICE5QR1680AGXUMA1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-12
Country Of Origin:
Germany, Mainland China, Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
13 Weeks
Manufacturer:
Infineon Technologies AG
YTEOL:
8
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT/VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
27 V
Input Voltage-Min:
11 V
Input Voltage-Nom:
18 V
JESD-30 Code:
R-PDSO-G12
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP12/16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
27 V
Supply Voltage-Min (Vsup):
9.5 V
Supply Voltage-Nom (Vsup):
18 V
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
1000 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm

ICE5QR1680AGXUMA1 Frequently Asked Questions (FAQs)

Infineon recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the power planes.
Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal gradients. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Infineon recommends using X7R or X5R ceramic capacitors with a capacitance value of 10-22 uF and a voltage rating of 2.5-3.3V. Place the decoupling capacitors as close to the device as possible to minimize inductance.
The ICE5QR1680AGXUMA1 requires a specific power sequencing to ensure reliable operation. Ensure that the core voltage (VCC) is powered up before the I/O voltage (VCCIO), and that the device is powered down in the reverse order.
The internal regulators can be configured using the device's configuration registers. Infineon recommends using the default settings for most applications, but custom settings can be used to optimize power consumption and performance.

Trust Checks

Community Provided

System Verified

Community Approved

ICE5QR1680AGXUMA1 Overview

Use the download button to access the ICE5QR1680AGXUMA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ICE5Q, or try a keyword search, such as Switching Regulator or Controllers
