- Part Number ICE5QR2270AZXKLA1
- Manufacturer Infineon
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - PG-DIP-7
- Released Date Mar 6, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ICE5QR2270AZXKLA1 Details
-
Manufacturer Part Number:
ICE5QR2270AZXKLA1
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
DIP-7
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
26 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING CONTROLLER
ICE5QR2270AZXKLA1 Frequently Asked Questions (FAQs)
-
Infineon provides a reference design guide for the ICE5QR2270AZXKLA1, which includes recommendations for PCB layout, thermal management, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal efficiency, and reliability.
-
The ICE5QR2270AZXKLA1 has a flexible gate driver configuration. To optimize it for your application, you'll need to consider factors like switching frequency, dead time, and voltage levels. Infineon provides application notes and simulation models to help you optimize the gate driver configuration for your specific use case.
-
When paralleling multiple ICE5QR2270AZXKLA1 devices, it's essential to consider the current sharing, thermal management, and synchronization of the devices. Infineon provides guidelines and recommendations for paralleling these devices in their application notes and technical documentation.
-
To ensure EMC and EMI compliance, follow Infineon's guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, common-mode chokes, and other noise reduction techniques to minimize electromagnetic interference.
-
Infineon provides reliability data and lifetime expectations for the ICE5QR2270AZXKLA1 in their datasheet and application notes. However, it's essential to consider the specific operating conditions, thermal management, and stress factors in your application to ensure the device meets your reliability and lifetime requirements.
Trust Checks
Expert Contribution
System Verified
Community Approved
ICE5QR2270AZXKLA1 Overview

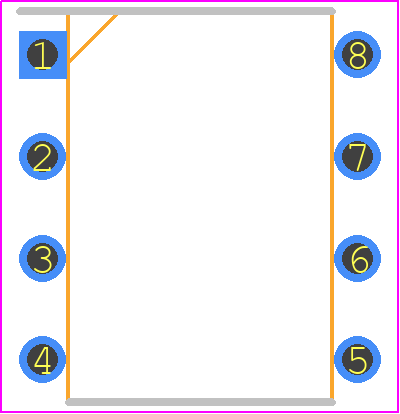

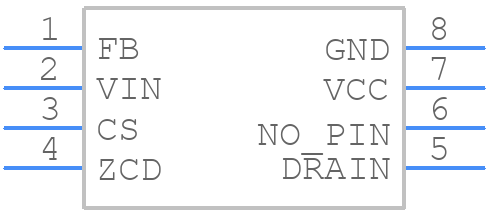

Use the download button to access the ICE5QR2270AZXKLA1 schematic symbol, PCB footprint, and 3D model.
