Infineon provides a reference design guide and thermal design guidelines in their application notes and layout recommendations. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
To optimize for low-power modes, engineers should refer to the device's power management features, such as the Power Save Mode (PSM) and the Low Power Mode (LPM). Additionally, they should consider using external components, like low-dropout regulators, to minimize standby power consumption.
Infineon recommends using a combination of ceramic and electrolytic capacitors for decoupling, with values ranging from 10nF to 10uF. The capacitors should be placed as close as possible to the device's power pins, following the recommended layout guidelines.
To ensure EMC and EMI compliance, engineers should follow Infineon's guidelines for PCB layout, component selection, and shielding. They should also consider using EMI filters, common-mode chokes, and other noise-reducing components.
The ICE5QR4780AZXKLA1 has a maximum junction temperature (Tj) of 150°C. Engineers should consider derating factors, such as temperature, voltage, and current, to ensure the device operates within its safe operating area (SOA). This may require reducing the device's power dissipation or using thermal management techniques, like heat sinks or thermal interfaces.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICE5QR4780AZXKLA1 Overview

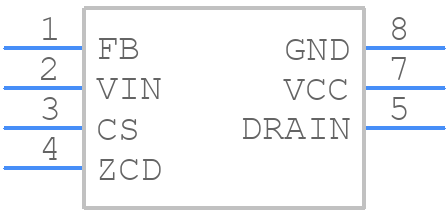

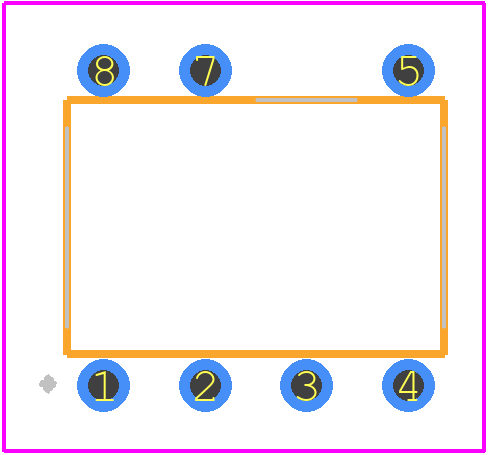

Use the download button to access the ICE5QR4780AZXKLA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICE5Q,
or try a keyword search, such as Switching Regulator or Controllers
