ICE5QSAGXUMA1 - Infineon

Description: INFINEON - ICE5QSAGXUMA1 - PWM Controller, Quasi Resonant, 10V - 25.5V Supply, 3.6V In, 1V Low/13V High Out, SOIC-8

Download ICE5QSAGXUMA1 Model

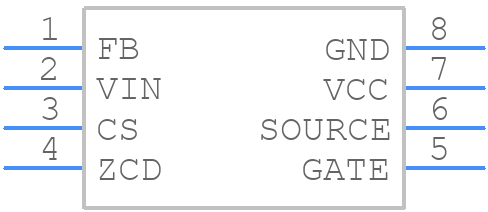

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICE5QSAGXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8 .
click to zoom
3D Models
ICE5QSAGXUMA1 - Infineon  - 3D model - Small Outline Packages - PG-DSO-8 .
click to zoom

ICE5QSAGXUMA1 Details

  • Manufacturer Part Number:

    ICE5QSAGXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DSO-8

  • Country Of Origin:

    Germany, Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Additional Feature:

    ALSO HAS A CONTROL TECHNIQUE OF PWM

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    25.5 V

  • Input Voltage-Min:

    9.5 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ICE5QSAGXUMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to ensure efficient heat dissipation.
  • Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal gradients. Also, consider using thermal simulation tools to optimize the design.
  • The critical timing parameters include the clock frequency, clock-to-output delay, and output slew rate. These parameters should be carefully considered during system design to ensure reliable operation.
  • The ICE5QSAGXUMA1 requires a specific power sequencing and reset signal protocol to ensure reliable operation. Refer to the datasheet and application notes for detailed guidelines.
  • Use 0.1uF to 1uF decoupling capacitors placed close to the device's power pins, with a maximum distance of 1mm. This helps to reduce noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICE5QSAGXUMA1 Overview

Use the download button to access the ICE5QSAGXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICE5Q, or try a keyword search, such as Switching Regulator or Controllers

Parts related to ICE5QSAGXUMA1
