iCF05003A006V-003-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 10.9W, 0.6V, Non-Isolated type, Option: EPC/Negative

Download iCF05003A006V-003-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

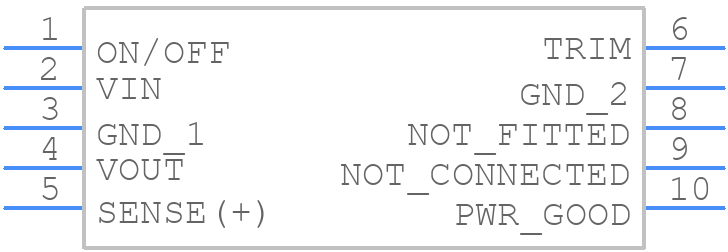

Symbol
iCF05003A006V-003-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
iCF05003A006V-003-R - TDK Lambda PCB footprint - Other - Other - iCF05003A006V-003-R-4
click to zoom
3D Models
iCF05003A006V-003-R - TDK Lambda - 3D model - Other - iCF05003A006V-003-R-4
click to zoom

iCF05003A006V-003-R Details

  • Manufacturer Part Number:

    ICF05003A006V-003-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CSA, UL, VDE

  • Efficiency (Main Output):

    92%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Length:

    12.2 mm

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Ripple Voltage (Main Out):

    0.00884 Vrms

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    16.5 W

  • Width:

    12.2 mm

iCF05003A006V-003-R Frequently Asked Questions (FAQs)

  • TDK-Lambda recommends a PCB layout with a solid copper ground plane and thermal vias to ensure efficient heat dissipation. A minimum of 2oz copper thickness is recommended.
  • Yes, the ICF05003A006V-003-R is designed to withstand high-vibration environments. However, it's recommended to follow the recommended mounting and screw torque specifications to ensure reliable operation.
  • The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may affect the converter's stability and performance.
  • Yes, multiple ICF05003A006V-003-R converters can be paralleled to increase the output power. However, it's essential to ensure that the converters are synchronized and share the load current equally to prevent uneven stress and potential reliability issues.
  • The recommended input fuse rating is 1A slow-blow fuse. This ensures that the converter is protected from input overcurrent conditions while allowing for normal operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

iCF05003A006V-003-R Overview

Use the download button to access the iCF05003A006V-003-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iCF05, or try a keyword search, such as Power Supply Modules
