The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the thermal derating guidelines in the datasheet.
To ensure EMC and reduce EMI, use a metal enclosure, add EMI filters, and follow proper PCB layout and grounding techniques. Additionally, consider using shielding, filtering, and grounding techniques as per the application's EMC requirements.
The ICF12003A007V-003-R meets safety certifications such as UL60950-1, EN60950-1, and IEC60950-1. Ensure proper installation, wiring, and insulation to prevent electrical shock, fire hazards, and other safety risks.
To troubleshoot, check the input voltage, output load, and ambient temperature. Verify the converter's configuration, wiring, and PCB layout. Use an oscilloscope to measure the output voltage and current. Consult the datasheet and application notes for specific troubleshooting guidelines.
Store the converter in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or electrical components. Use anti-static wrist straps and mats to prevent electrostatic discharge damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
iCF12003A007V-003-R Overview

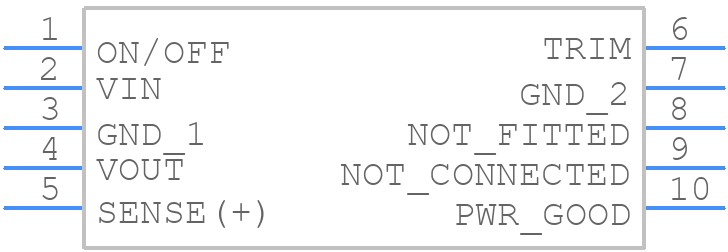

Use the download button to access the iCF12003A007V-003-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iCF12,
or try a keyword search, such as Power Supply Modules
