iCG12006A007V-003-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 33W, 0.7V, Non-Isolated type, Option: EPC/Negative

Download iCG12006A007V-003-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

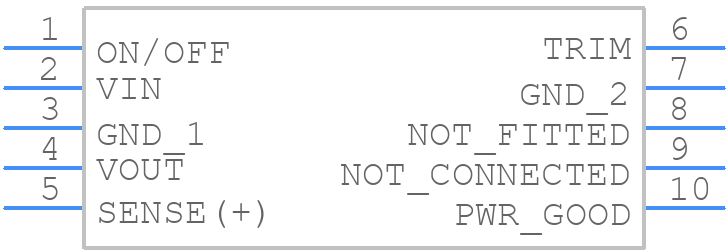

iCG12006A007V-003-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
iCG12006A007V-003-R - TDK Lambda PCB footprint - Other - Other - iCG12006A007V-003-R-2
click to zoom
3D Models
iCG12006A007V-003-R - TDK Lambda - 3D model - Other - iCG12006A007V-003-R-2
click to zoom

iCG12006A007V-003-R Details

  • Manufacturer Part Number:

    ICG12006A007V-003-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CSA, UL, VDE

  • Efficiency (Main Output):

    94%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Length:

    12.2 mm

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Ripple Voltage (Main Out):

    0.0053 Vrms

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    33 W

  • Width:

    12.2 mm

iCG12006A007V-003-R Frequently Asked Questions (FAQs)

  • TDK-Lambda recommends a PCB layout with a solid copper ground plane and thermal vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the PCB.
  • Yes, the ICG12006A007V-003-R is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which ensures reliable operation in applications with mechanical stress.
  • To ensure EMC, TDK-Lambda recommends using a shielded enclosure, keeping the converter away from sensitive components, and using EMI filters or shielding on the input and output lines.
  • The maximum output capacitance is 2200uF. Exceeding this value may cause instability or oscillation in the converter.
  • Yes, you can parallel multiple ICG12006A007V-003-R converters for higher power output. However, it's essential to ensure that the converters are synchronized and share the load equally to prevent uneven stress and potential failure.
