iCG12006A007V-006-R - TDK Lambda

Description: DC-DC Converters, On-board type, Output: 33W, 0.7V, Non-Isolated type, Option: LGA/Positive

Download iCG12006A007V-006-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

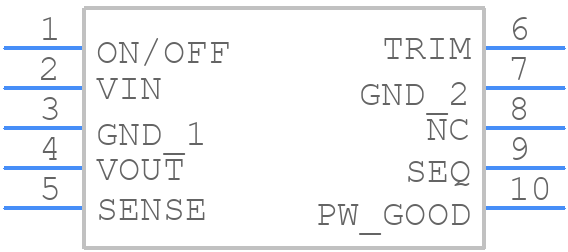

iCG12006A007V-006-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints
iCG12006A007V-006-R - TDK Lambda PCB footprint - Other - Other - iCG12006A007V-006-R-1
click to zoom
3D Models
iCG12006A007V-006-R - TDK Lambda - 3D model - Other - iCG12006A007V-006-R-1
click to zoom

iCG12006A007V-006-R Details

  • Manufacturer Part Number:

    ICG12006A007V-006-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CSA, UL, VDE

  • Efficiency (Main Output):

    94%

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4.5 V

  • Length:

    12.2 mm

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Ripple Voltage (Main Out):

    0.0053 Vrms

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    33 W

  • Width:

    12.2 mm

iCG12006A007V-006-R Frequently Asked Questions (FAQs)

  • TDK-Lambda recommends a PCB layout with a solid copper ground plane and thermal vias under the module to ensure efficient heat dissipation. A minimum of 2oz copper thickness is recommended.
  • Yes, the ICG12006A007V-006-R is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications.
  • To ensure EMC, TDK-Lambda recommends using a metal enclosure, proper cable shielding, and following the recommended PCB layout and grounding scheme. Additionally, the module meets EN55022 Class B and CISPR22 Class B emission standards.
  • The maximum allowable input capacitance for the ICG12006A007V-006-R is 47μF. Exceeding this value may affect the module's stability and performance.
  • Yes, the ICG12006A007V-006-R can be used in redundant or parallel configurations to achieve higher power ratings or improved reliability. However, proper design and implementation are required to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

iCG12006A007V-006-R Overview

Use the download button to access the iCG12006A007V-006-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iCG12, or try a keyword search, such as Power Supply Modules
