A good PCB layout for optimal thermal performance involves placing the ICL5102XUMA2 near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the thermal path short and using thermal vias can help to reduce thermal resistance.
To ensure reliable operation over the full temperature range, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal management strategy, and ensure that the device is operated within its specified voltage and current limits. Additionally, using a thermally conductive material for the PCB and ensuring good airflow around the device can help to reduce thermal stress.
To ensure EMI and EMC compliance, it is essential to follow proper PCB design and layout guidelines, use a suitable EMI filter, and ensure that the device is operated within its specified voltage and current limits. Additionally, using a shielded enclosure, minimizing loop areas, and using a common mode choke can help to reduce EMI emissions.
To troubleshoot issues with the ICL5102XUMA2, start by checking the power supply voltage, current, and temperature. Verify that the device is operated within its specified limits and that the PCB layout is correct. Use an oscilloscope to check for voltage and current waveforms, and use a thermal camera to check for hotspots. Consult the datasheet and application notes for troubleshooting guidelines.
Operating the ICL5102XUMA2 at high altitudes can affect its performance and reliability. At high altitudes, the air pressure is lower, which can lead to increased thermal resistance and reduced heat dissipation. This can result in increased junction temperatures, which can affect the device's reliability and lifespan. Consult the datasheet and application notes for guidance on operating the device at high altitudes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL5102XUMA2 Overview

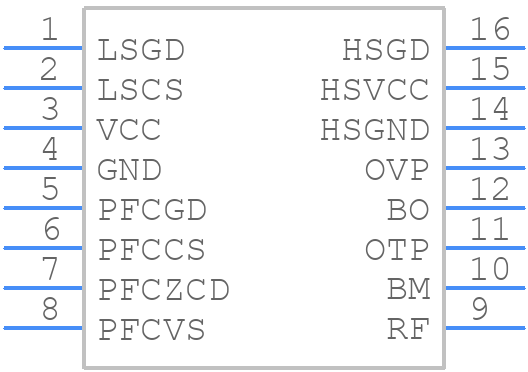

Use the download button to access the ICL5102XUMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL51,
or try a keyword search, such as Display Drivers
