ICL7660AIBA - Renesas Electronics

Description: The ICL7660S and ICL7660A Super Voltage Converters are monolithic CMOS voltage conversion ICs that guarantee significant performance advantages over other similar devices. They are direct replacements for the industry standard ICL7660 offering an extended operating supply voltage range up to 12V, with lower supply current. A Frequency Boost pin has been incorporated to enable the user to achieve lower output impedance despite using smaller capacitors. All improvements are highlighted in the “Electrical Spec

Download ICL7660AIBA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

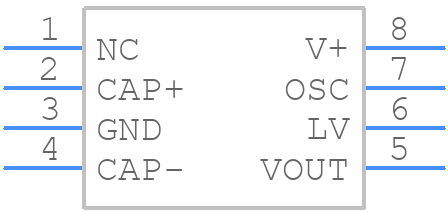

ICL7660AIBA - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL7660AIBA - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ICL7660AIBA - Renesas Electronics - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ICL7660AIBA Details

  • Manufacturer Part Number:

    ICL7660AIBA

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOICN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    12 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER

  • Switching Frequency-Max:

    10 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ICL7660AIBA Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the ICL7660AIBA is 12V, but it's recommended to operate within the specified input voltage range of 7.5V to 10.5V for optimal performance.
  • To ensure a stable and regulated output voltage, make sure to use the recommended output capacitor value (10uF) and keep the input voltage within the specified range. Also, ensure that the input voltage is well-filtered and decoupled to prevent noise and ripple from affecting the output.
  • The minimum input voltage required for the ICL7660AIBA to operate is 7.5V, but it's recommended to operate at a minimum of 8V to ensure stable output voltage regulation.
  • The ICL7660AIBA is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to prevent overheating and ensure reliable operation.
  • The output voltage of the ICL7660AIBA is fixed at -5V, and it's not adjustable. The output voltage is determined by the internal voltage reference and the feedback network, and it's not dependent on the input voltage.
