ICL7663SCBAZA - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The ICL7663S Super Programmable Micropower Voltage Regulator is a low power, high efficiency positive voltage regulator which accepts 1.6V to 16V inputs and provides adjustable outputs from 1.3V to 16V at currents up to 40mA. It is a direct replacement for the industry standard ICL7663B offering wider operating voltage and temperature ranges, improved output accuracy (ICL7663SA), better temperature coefficient, guaranteed maximum supply

Download ICL7663SCBAZA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

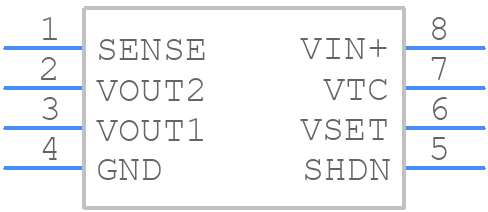

ICL7663SCBAZA - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL7663SCBAZA - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8-15
click to zoom
3D Models
ICL7663SCBAZA - Renesas Electronics - 3D model - Small Outline Packages - M8-15
click to zoom

ICL7663SCBAZA Details

  • Manufacturer Part Number:

    ICL7663SCBAZA

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    0.7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current1-Max:

    0.005 A

  • Output Voltage1-Max:

    16 V

  • Output Voltage1-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ICL7663SCBAZA Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the ICL7663SCBAZA is 12V, but it's recommended to operate within the specified input voltage range of 7.5V to 10.5V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and keep the input and output capacitors close to the device. Additionally, avoid using long traces and minimize parasitic inductance.
  • The ICL7663SCBAZA can supply a minimum output current of 1mA, but it's recommended to operate within the specified output current range of 10mA to 100mA for optimal performance and reliability.
  • The ICL7663SCBAZA is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as temperature increases to ensure reliability and prevent thermal shutdown.
