ICL7663SCPAZ - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The ICL7663S Super Programmable Micropower Voltage Regulator is a low power, high efficiency positive voltage regulator which accepts 1.6V to 16V inputs and provides adjustable outputs from 1.3V to 16V at currents up to 40mA. It is a direct replacement for the industry standard ICL7663B offering wider operating voltage and temperature ranges, improved output accuracy (ICL7663SA), better temperature coefficient, guaranteed maximum supply

Download ICL7663SCPAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

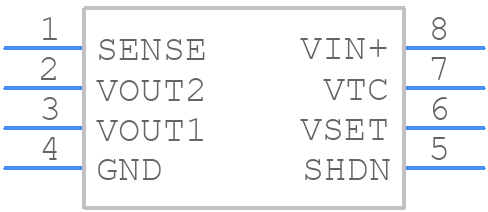

ICL7663SCPAZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL7663SCPAZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E8.3
click to zoom
3D Models
ICL7663SCPAZ - Renesas Electronics - 3D model - Dual-In-Line Packages - E8.3
click to zoom

ICL7663SCPAZ Details

  • Manufacturer Part Number:

    ICL7663SCPAZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    E8.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Nom:

    0.7 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Line Regulation-Max (%/V):

    0.3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    70 °C

  • Output Current1-Max:

    0.005 A

  • Output Voltage1-Max:

    16 V

  • Output Voltage1-Min:

    1.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    5.33 mm

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ICL7663SCPAZ Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the ICL7663SCPAZ is 12V, but it's recommended to operate within the specified input voltage range of 7.5V to 10.5V for optimal performance and reliability.
  • To ensure the output voltage is stable and regulated, make sure to use a suitable output capacitor (e.g., 10uF) and follow the recommended PCB layout guidelines to minimize noise and oscillations.
  • The minimum input voltage required for the ICL7663SCPAZ to operate is 7.5V, but it's recommended to operate above 8V for optimal performance and to ensure the output voltage is within the specified range.
  • The ICL7663SCPAZ is rated for operation up to 125°C, but it's recommended to derate the output current and follow the recommended thermal management guidelines to ensure reliable operation in high-temperature environments.
  • The output current capability of the ICL7663SCPAZ depends on the input voltage, output voltage, and ambient temperature. Refer to the datasheet's current limit vs. input voltage graph and follow the recommended calculation method to determine the maximum output current.
