ICL7667CBAZA - Renesas Electronics

Description: The ICL7667 is a dual monolithic high-speed driver designed to convert TTL level signals into high current outputs at voltages up to 15V. Its High-Speed and current output enable it to drive large capacitive loads with high slew rates and low propagation delays. With an output voltage swing only millivolts less than the supply voltage and a maximum supply voltage of 15V, the ICL7667 is well suited for driving power MOSFETs in high frequency switched-mode power converters. The ICL7667's high current outputs

Download ICL7667CBAZA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

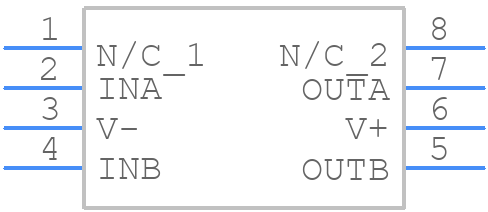

ICL7667CBAZA - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL7667CBAZA - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15 8 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE
click to zoom
3D Models
ICL7667CBAZA - Renesas Electronics - 3D model - Small Outline Packages - M8.15 8 LEAD NARROW BODY SMALL OUTLINE PLASTIC PACKAGE
click to zoom

ICL7667CBAZA Details

  • Manufacturer Part Number:

    ICL7667CBAZA

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    STANDARD

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    3.9 mm

ICL7667CBAZA Frequently Asked Questions (FAQs)

  • The ICL7667CBAZA can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • To ensure a stable output voltage, make sure to use a suitable output capacitor (at least 10uF) and a minimum load of 10mA. Also, keep the input voltage ripple below 100mV to prevent oscillations.
  • The ICL7667CBAZA can provide up to 3A of output current, but it's recommended to keep the output current below 2.5A for optimal performance and reliability.
  • To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the junction temperature below 125°C. Also, avoid operating the device at maximum output current and input voltage simultaneously.
  • The ICL7667CBAZA is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink and ensuring good airflow.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICL7667CBAZA Overview

Use the download button to access the ICL7667CBAZA schematic symbol, PCB footprint, and 3D model.
