ICL7667CPAZ - Renesas Electronics

Description: The ICL7667 is a dual monolithic high-speed driver designed to convert TTL level signals into high current outputs at voltages up to 15V. Its High-Speed and current output enable it to drive large capacitive loads with high slew rates and low propagation delays. With an output voltage swing only millivolts less than the supply voltage and a maximum supply voltage of 15V, the ICL7667 is well suited for driving power MOSFETs in high frequency switched-mode power converters. The ICL7667's high current outputs

Download ICL7667CPAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

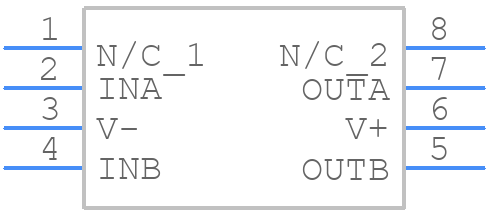

Symbol
ICL7667CPAZ - Renesas Electronics - PCB symbol
click to zoom

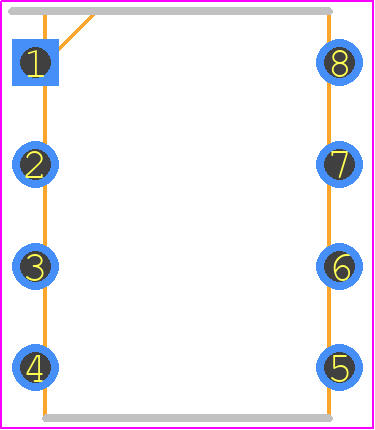

PCB Footprints
ICL7667CPAZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E8.3 (JEDEC MS-001-BA ISSUE D)
click to zoom
3D Models
ICL7667CPAZ - Renesas Electronics - 3D model - Dual-In-Line Packages - E8.3 (JEDEC MS-001-BA ISSUE D)
click to zoom

ICL7667CPAZ Details

  • Manufacturer Part Number:

    ICL7667CPAZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    E8.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.585 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    STANDARD

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    7.62 mm

ICL7667CPAZ Frequently Asked Questions (FAQs)

  • The ICL7667CPAZ can handle input voltages up to 12V, but it's recommended to keep the input voltage below 10V for optimal performance and to prevent overheating.
  • To ensure a stable output voltage, make sure to use a suitable output capacitor (at least 10uF) and a minimum load of 10mA. Also, keep the input voltage ripple below 100mV to prevent oscillations.
  • The ICL7667CPAZ can provide up to 200mA of output current, but it's recommended to keep the output current below 150mA for optimal performance and to prevent overheating.
  • To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the input voltage and output current within the recommended ranges.
  • The ICL7667CPAZ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to prevent overheating and ensure reliable operation.
