ICM-20601 - TDK

Description: World?s First Wide-Range 6-Axis MEMS MotionTracking Device for High-Speed, Non-Impact Applications, with a Wide 4000 dps FSR Gyroscope and 32g Accelerometer

Download ICM-20601 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

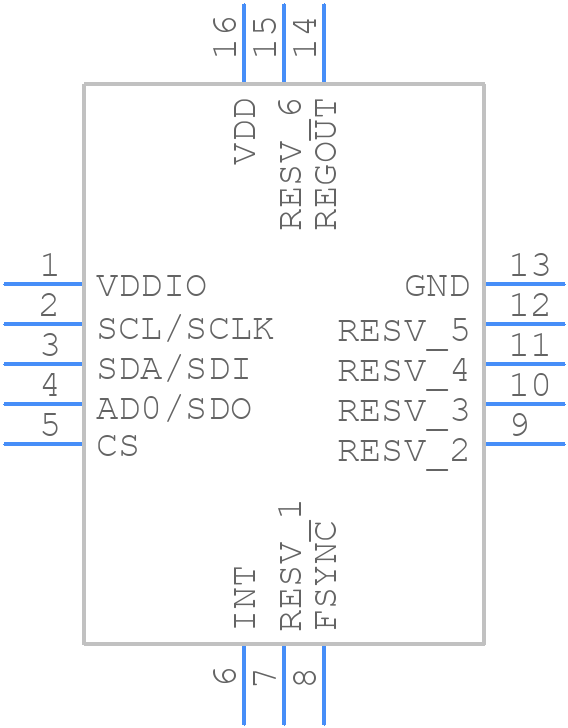

Symbol
ICM-20601 - TDK - PCB symbol
click to zoom
PCB Footprints
ICM-20601 - TDK PCB footprint - Other - Other - 16 Lead LGA (3x3x0.75)-1-1
click to zoom
3D Models
ICM-20601 - TDK - 3D model - Other - 16 Lead LGA (3x3x0.75)-1-1
click to zoom

ICM-20601 Details

  • Manufacturer Part Number:

    ICM-20601

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

ICM-20601 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized.
  • To configure the ICM-20601 for low-power mode, set the LP_MODE bit in the PWR_MGMT_1 register to '1'. This reduces the current consumption to approximately 10 μA.
  • The maximum acceleration range of the ICM-20601 is ±30g for the accelerometer and ±2000 dps for the gyroscope.
  • Calibration of the ICM-20601 involves performing a series of movements to capture the sensor's output at different orientations. The calibration process can be done using the built-in self-test function or through external software.
  • The I2C address of the ICM-20601 is 0x69 (default) or 0x68 (if the AD0 pin is connected to GND).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICM-20601 Overview

Use the download button to access the ICM-20601 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM-2, or try a keyword search, such as Other Sensors/Transducers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
