- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ICM-20608-G
- Part Number ICM-20608-G
- Manufacturer TDK
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 16 Lead LGA (3x3x0.75)-1-1
- Released Date Feb 22, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ICM-20608-G Details
-
Manufacturer Part Number:
ICM-20608-G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.01
-
Manufacturer:
TDK Corporation
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
ICM-20608-G Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal voltage regulators are powered up correctly.
-
To configure the ICM-20608-G for low-power mode, set the LP_MODE bit in the POWER_CTL register to '1'. This reduces the current consumption of the device.
-
The maximum frequency of the ICM-20608-G's internal clock is 32.768 kHz.
-
Yes, the ICM-20608-G can operate with a supply voltage of 1.71V to 3.6V. However, the device's performance and accuracy may be affected at 3.3V, so it's recommended to use a 1.8V or 2.5V supply voltage for optimal performance.
-
The ICM-20608-G does not require calibration. The device is factory-calibrated and the calibration data is stored in the device's internal memory. However, you may need to perform a self-test or a sensor reset to ensure the device is operating correctly.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
ICM-20608-G Overview

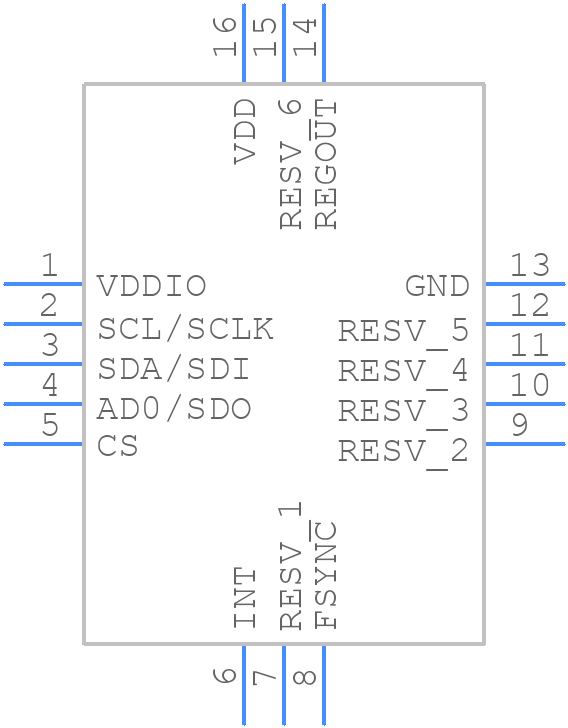

Use the download button to access the ICM-20608-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM-2,
or try a keyword search, such as Other Signal Circuits
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
