The recommended PCB layout for the ICM-20609 involves keeping the accelerometer and gyroscope axes aligned with the PCB axes, and ensuring that the device is placed away from noise sources such as switching regulators and high-frequency signals. A 4-layer PCB with a solid ground plane is also recommended to reduce noise and improve performance.
The ICM-20609 does not require calibration in the classical sense, but it does require initialization and configuration. This involves setting the desired sensitivity, bandwidth, and output data rate, as well as enabling or disabling specific features such as the internal clock and temperature sensor. The device also has built-in self-test and diagnostic functions that can be used to verify its operation.
The ICM-20609 has an operating temperature range of -40°C to +85°C, but it can tolerate storage temperatures up to +125°C. However, it's recommended to operate the device within the specified operating temperature range to ensure optimal performance and accuracy.
Yes, the ICM-20609 is designed to operate in high-vibration environments and can withstand vibrations up to 10,000 g. However, it's recommended to follow proper mounting and installation procedures to ensure that the device is securely attached to the PCB and that the PCB is properly secured to the system.
The ICM-20609 has a digital interface that can be connected to a microcontroller using the I2C or SPI protocol. The device requires a 1.8V or 3.3V power supply, and the interface signals should be level-shifted if necessary. The microcontroller can then read the sensor data from the ICM-20609 using the appropriate protocol and register addresses.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICM-20609 Overview

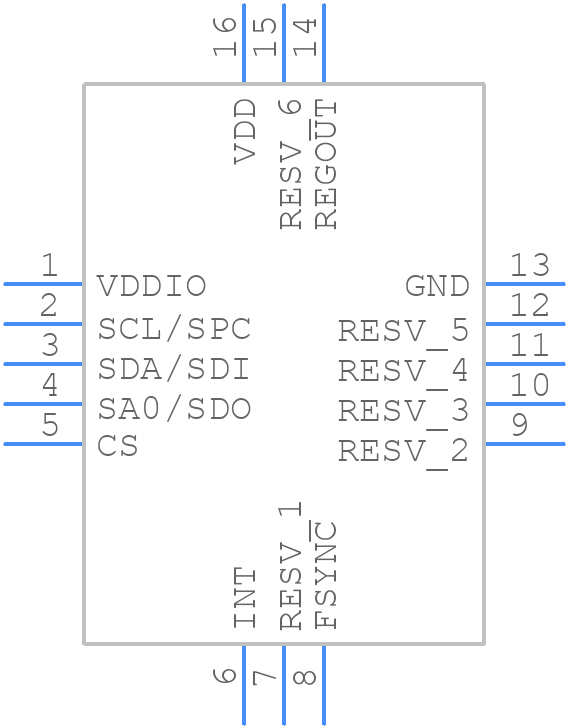

Use the download button to access the ICM-20609 schematic symbol, PCB footprint, and 3D model.
