ICM-20689 - TDK

Description: IMUs - Inertial Measurement Units 6-Axis DMP-Enabled Drone/VR/IoT solution, Targeted For All Current MPU-6000/6050 Users

Download ICM-20689 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

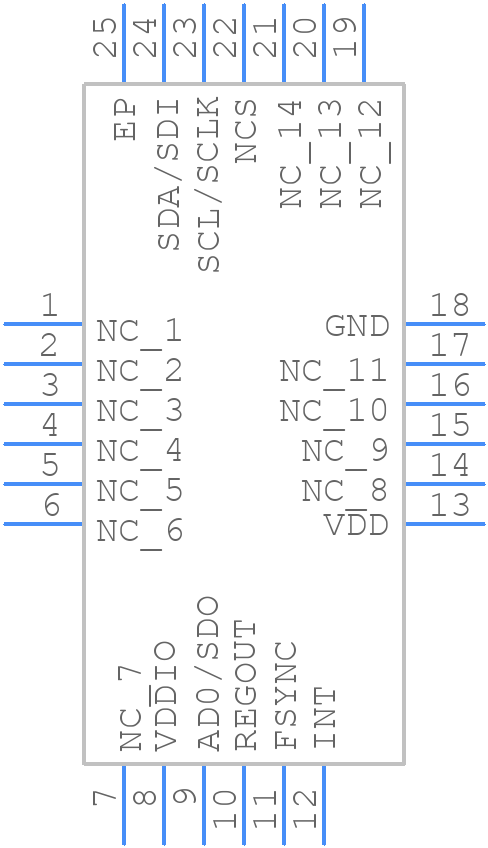

Symbol
ICM-20689 - TDK - PCB symbol
click to zoom
PCB Footprints
ICM-20689 - TDK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ICM-20689
click to zoom
3D Models
ICM-20689 - TDK - 3D model - Quad Flat No-Lead - ICM-20689
click to zoom

ICM-20689 Details

  • Manufacturer Part Number:

    ICM-20689

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4 mm

ICM-20689 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal voltage regulators are powered up correctly.
  • To configure the ICM-20689 for low-power mode, set the LP_MODE bit in the POWER_CTL register to '1'. This reduces the current consumption of the device.
  • The maximum frequency of the ICM-20689's internal clock is 32.768 kHz.
  • Yes, the ICM-20689 can operate with a supply voltage of 1.71V to 3.6V. However, the device's performance and accuracy may be affected at lower supply voltages.
  • The ICM-20689 does not require calibration. The device is factory-calibrated and the calibration data is stored in the device's internal memory.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICM-20689 Overview

Use the download button to access the ICM-20689 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM-2, or try a keyword search, such as Other Sensors/Transducers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
