ICM-314-1-GT-HT - Adam Tech

Description: IC & Component Sockets MACHINE PIN SOCKET, IC, DIP, 14P

Download ICM-314-1-GT-HT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ICM-314-1-GT-HT - Adam Tech - PCB symbol
click to zoom
PCB Footprints

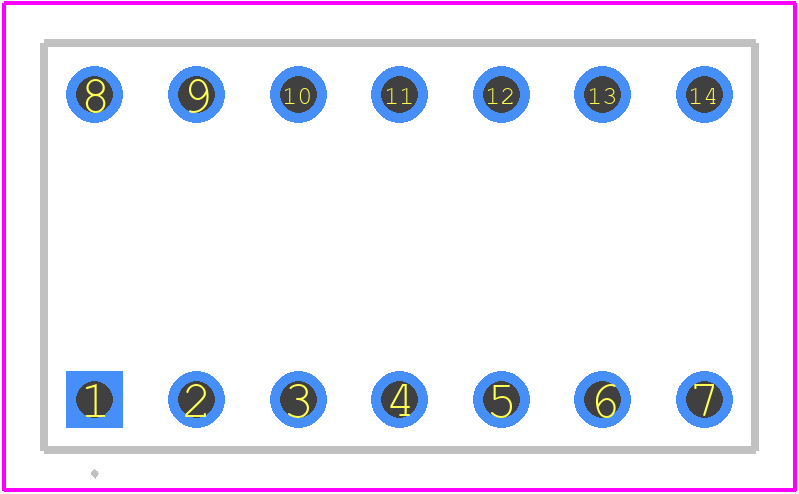

ICM-314-1-GT-HT - Adam Tech PCB footprint - Other - Other - ICM-314-1-GT-HT-2
click to zoom
3D Models
ICM-314-1-GT-HT - Adam Tech - 3D model - Other - ICM-314-1-GT-HT-2
click to zoom

ICM-314-1-GT-HT Details

  • Manufacturer Part Number:

    ICM-314-1-GT-HT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.183 inch

  • Body Length:

    0.7 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP14

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

ICM-314-1-GT-HT Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ICM-314-1-GT-HT is -40°C to 100°C, as per the manufacturer's guidelines.
  • Yes, ICM-314-1-GT-HT is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • The typical lead time for ICM-314-1-GT-HT is 8-12 weeks, depending on the quantity and availability. It's recommended to check with the manufacturer or authorized distributors for the most up-to-date lead time information.
  • Yes, ICM-314-1-GT-HT is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The recommended soldering temperature for ICM-314-1-GT-HT is 260°C (500°F) for a maximum of 10 seconds, to prevent damage to the component.
