ICM-316-1-GT-HT - Adam Tech

Description: 16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Download ICM-316-1-GT-HT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

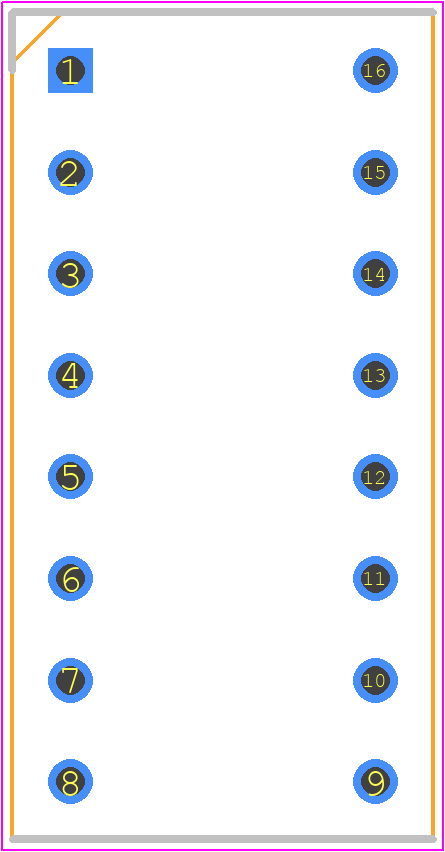

ICM-316-1-GT-HT - Adam Tech PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 16-Pin DIP
click to zoom
3D Models
ICM-316-1-GT-HT - Adam Tech  - 3D model - Dual-In-Line Sockets - 16-Pin DIP
click to zoom

ICM-316-1-GT-HT Details

  • Manufacturer Part Number:

    ICM-316-1-GT-HT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.183 inch

  • Body Length:

    0.8 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP16

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER
