ICM-318-1-GT-HT - Adam Tech

Description: 18 (2 x 9) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole, 3A , 4mOhm , -40°C ~ 105°C

Download ICM-318-1-GT-HT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ICM-318-1-GT-HT - Adam Tech - PCB symbol
click to zoom
PCB Footprints

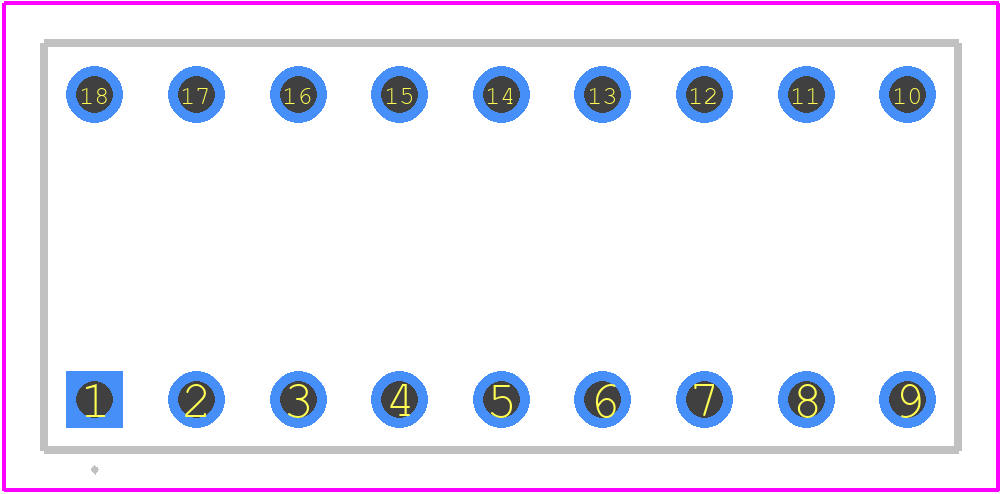

ICM-318-1-GT-HT - Adam Tech PCB footprint - Other - Other - ICM-318-1-GT-HT-1
click to zoom
3D Models
ICM-318-1-GT-HT - Adam Tech - 3D model - Other - ICM-318-1-GT-HT-1
click to zoom

ICM-318-1-GT-HT Details

  • Manufacturer Part Number:

    ICM-318-1-GT-HT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.183 inch

  • Body Length:

    0.9 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP18

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    18

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

ICM-318-1-GT-HT Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the ICM-318-1-GT-HT is -40°C to 125°C.
  • Yes, the ICM-318-1-GT-HT is designed to withstand high-vibration environments and can operate in applications with vibrations up to 10g.
  • The typical lead time for delivery of the ICM-318-1-GT-HT is 6-8 weeks, but this may vary depending on the quantity and availability.
  • Yes, the ICM-318-1-GT-HT is RoHS and REACH compliant, making it suitable for use in European Union countries.
  • The recommended soldering temperature profile for the ICM-318-1-GT-HT is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
