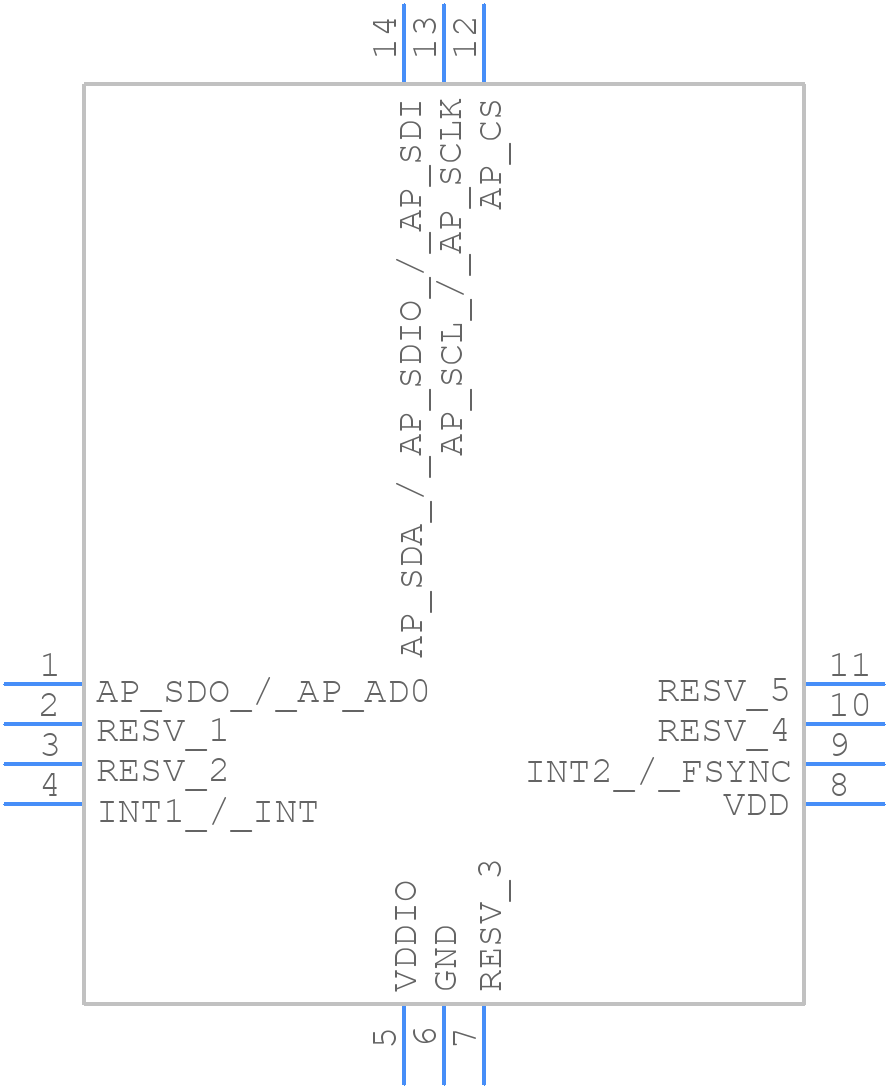

ICM-42605 - TDK

ICM-42605 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ICM-42605?
  The recommended PCB layout for the ICM-42605 involves placing the device near the center of the PCB, with the accelerometer and gyroscope axes aligned with the PCB's axes. It's also recommended to keep the device away from high-current carrying traces and to use a solid ground plane to minimize noise.
• How do I calibrate the ICM-42605?
  The ICM-42605 does not require calibration in the classical sense. However, it's recommended to perform a 'sensor fusion' calibration process to optimize the performance of the device. This involves collecting data from the device and using algorithms to compensate for any biases or scaling errors.
• What is the maximum operating temperature range for the ICM-42605?
  The ICM-42605 is rated for operation from -40°C to 85°C. However, it's recommended to operate the device within a narrower temperature range (e.g., 0°C to 60°C) to ensure optimal performance and accuracy.
• Can I use the ICM-42605 in a high-vibration environment?
  Yes, the ICM-42605 is designed to operate in high-vibration environments. However, it's recommended to take precautions to ensure the device is properly mounted and secured to the PCB to minimize the effects of vibration on the device's performance.
• How do I interface the ICM-42605 with a microcontroller?
  The ICM-42605 communicates with a microcontroller using a standard I2C or SPI interface. The device requires a 1.8V or 3.3V power supply, and the interface voltage can be set using the VIO pin. The device also requires a clock signal, which can be provided by the microcontroller or an external clock source.
