ICM-42670-P - TDK

Description: IMUs - Inertial Measurement Units Low-Power, Premium Performance 6-Axis MotionTrackingTM IMU with I3C, I2C and SPI interface in 2.5mm x 3mm Package

Download ICM-42670-P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

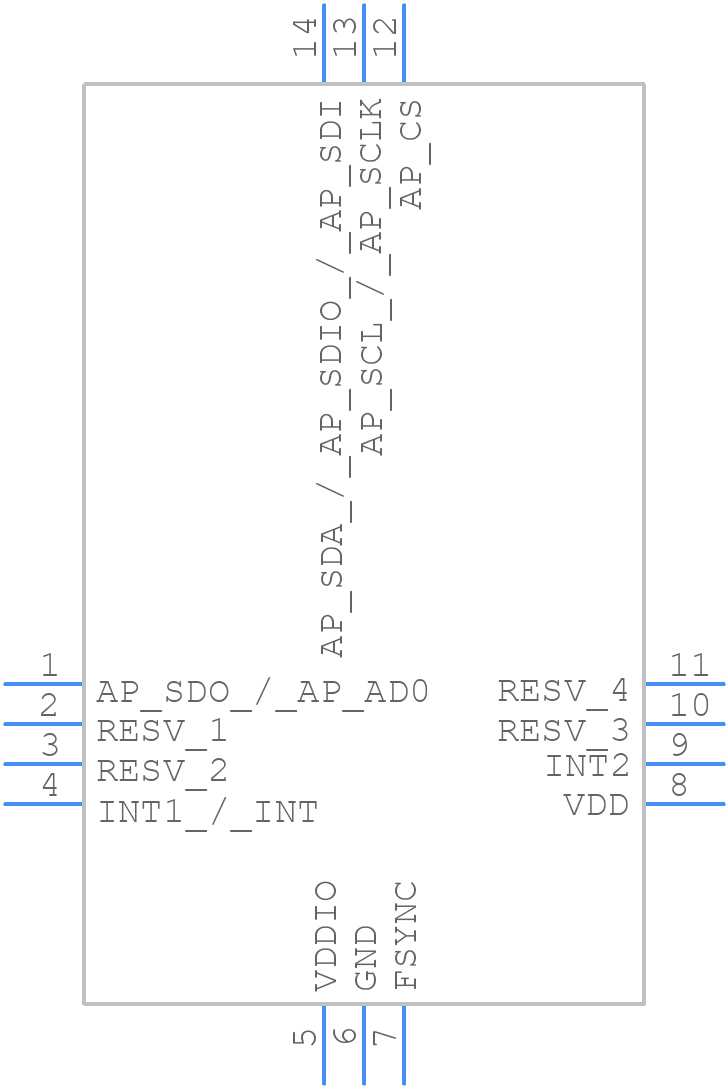

Symbol
ICM-42670-P - TDK - PCB symbol
click to zoom
PCB Footprints
ICM-42670-P - TDK PCB footprint - Other - Other - 14 Lead LGA (2.5x3x0.76)
click to zoom
3D Models
ICM-42670-P - TDK - 3D model - Other - 14 Lead LGA (2.5x3x0.76)
click to zoom

ICM-42670-P Details

  • Manufacturer Part Number:

    ICM-42670-P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-14

  • Manufacturer:

    TDK Corporation

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.65 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.18-1.62V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER/GYROSCOPE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

ICM-42670-P Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. The device should be placed near the center of the PCB to minimize noise and interference.
  • The ICM-42670-P has an internal calibration mechanism. However, for optimal accuracy, it is recommended to perform a zero-rate calibration and a sensitivity calibration using the device's built-in self-test function.
  • The ICM-42670-P is rated for operation from -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and accuracy.
  • The ICM-42670-P outputs 16-bit data in two's complement format. The data should be processed and scaled according to the device's datasheet to obtain accurate acceleration and angular rate measurements.
  • A 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the device's power pins, are recommended for optimal power supply decoupling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICM-42670-P Overview

Use the download button to access the ICM-42670-P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM-4, or try a keyword search, such as Other Sensors/Transducers
