ICM-624-1-GT-HT - Adam Tech

Description: 24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole

Download ICM-624-1-GT-HT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ICM-624-1-GT-HT - Adam Tech - PCB symbol
click to zoom
PCB Footprints

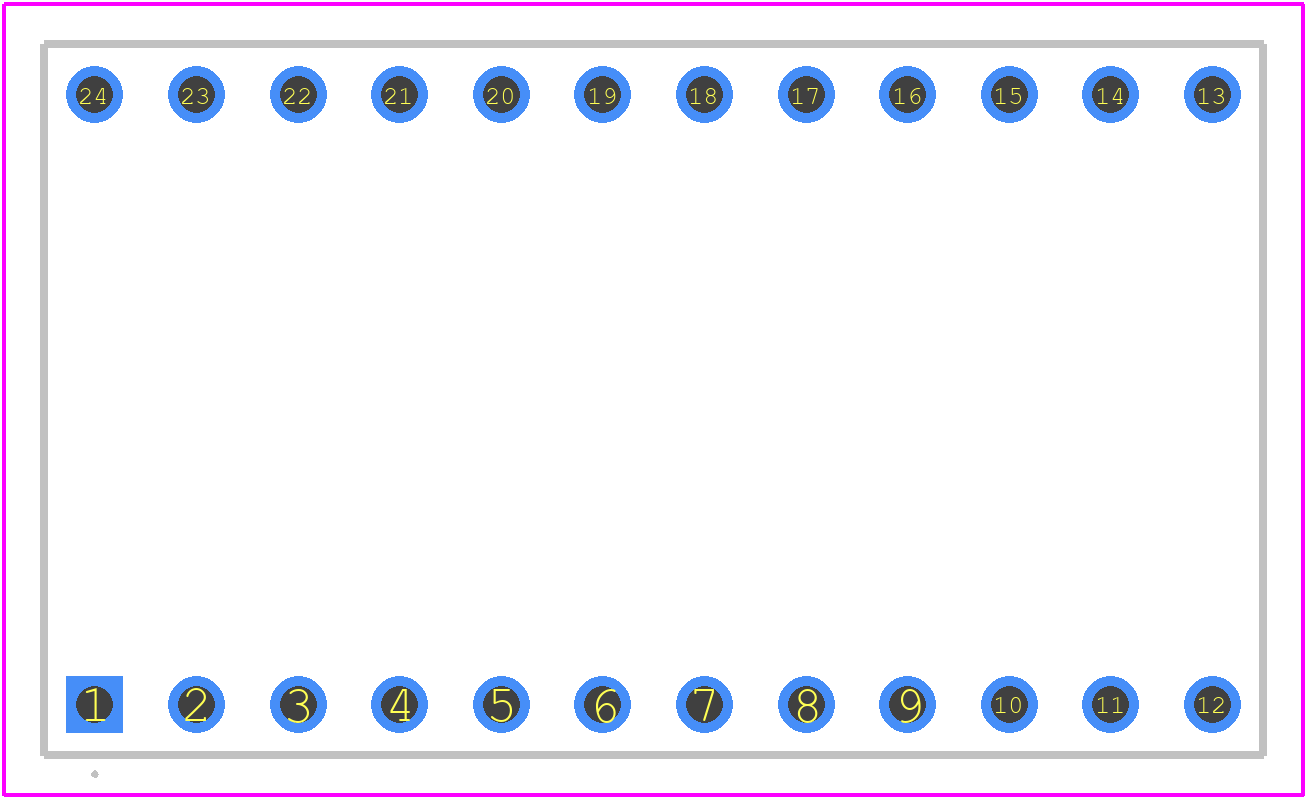

ICM-624-1-GT-HT - Adam Tech PCB footprint - Other - Other - ICM-624-1-GT-HT-2
click to zoom
3D Models
ICM-624-1-GT-HT - Adam Tech - 3D model - Other - ICM-624-1-GT-HT-2
click to zoom

ICM-624-1-GT-HT Details

  • Manufacturer Part Number:

    ICM-624-1-GT-HT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • Device Socket Type:

    IC SOCKET

ICM-624-1-GT-HT Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ICM-624-1-GT-HT is -40°C to 125°C, as per the manufacturer's guidelines.
  • Yes, ICM-624-1-GT-HT is designed to withstand high-vibration environments, with a vibration rating of 10G peak acceleration, 10-2000Hz frequency range.
  • The typical lead time for ICM-624-1-GT-HT is 8-12 weeks, depending on the quantity and availability. It's recommended to check with the manufacturer or authorized distributors for the most up-to-date lead time information.
  • Yes, ICM-624-1-GT-HT is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The recommended soldering temperature for ICM-624-1-GT-HT is 260°C (500°F) for a maximum of 10 seconds, to prevent damage to the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICM-624-1-GT-HT Overview

Use the download button to access the ICM-624-1-GT-HT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM-6, or try a keyword search, such as Sockets and Chip Carriers
