ICM7211AIPL+ - Analog Devices

Description: ICM7211AIPL+, LCD Driver, 4-Digits 28-Segments, 5V, 40-Pin PDIP P40+1

Download ICM7211AIPL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

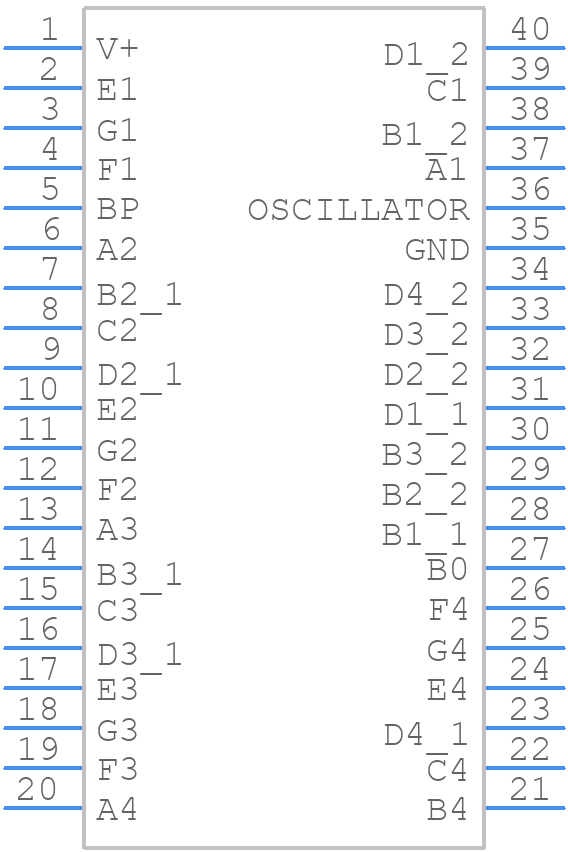

ICM7211AIPL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ICM7211AIPL+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P40+1
click to zoom
3D Models
ICM7211AIPL+ - Analog Devices - 3D model - Dual-In-Line Packages - P40+1
click to zoom

ICM7211AIPL+ Details

  • Manufacturer Part Number:

    ICM7211AIPL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-PDIP-600_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    PARALLEL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LIQUID CRYSTAL DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T40

  • JESD-609 Code:

    e3

  • Length:

    52.075 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Digits/Characters:

    4-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    7

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Characteristics:

    TOTEM-POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15.24 mm

ICM7211AIPL+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ICM7211AIPL+ involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane and to route the analog signals away from the digital signals.
  • Calibration of the ICM7211AIPL+ involves adjusting the internal voltage reference and the gain of the device. This can be done by applying a known input voltage and adjusting the calibration pins (CAL and GAIN) to achieve the desired output. It's recommended to follow the calibration procedure outlined in the datasheet and to use a high-precision voltage source for calibration.
  • The ICM7211AIPL+ can handle input voltages up to 30V without damage. However, it's recommended to limit the input voltage to 24V or less to ensure accurate readings and to prevent overheating.
  • Yes, the ICM7211AIPL+ can be used in a multiplexed configuration. This involves connecting multiple input channels to a single ADC input and using an external multiplexer to switch between the channels. The ICM7211AIPL+ has a high-input impedance and a fast settling time, making it suitable for multiplexed applications.
  • The recommended power-up sequence for the ICM7211AIPL+ is to apply the power supply voltage (VCC) first, followed by the analog input voltage (VIN). This ensures that the internal voltage reference is stable before the analog input is applied.
