ICM7212AMIPL+ - Analog Devices

Description: Maxim ICM7212AMIPL+, LED Display Driver, 4-Digits 28-Segments, 5 V, 40-Pin PDIP

Download ICM7212AMIPL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

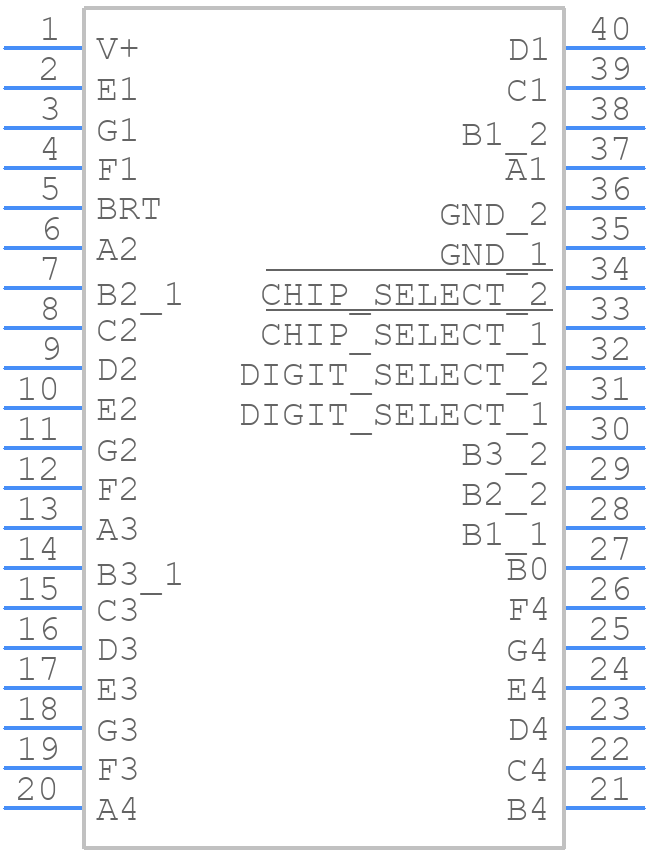

Symbol
ICM7212AMIPL+ - Analog Devices - PCB symbol
click to zoom

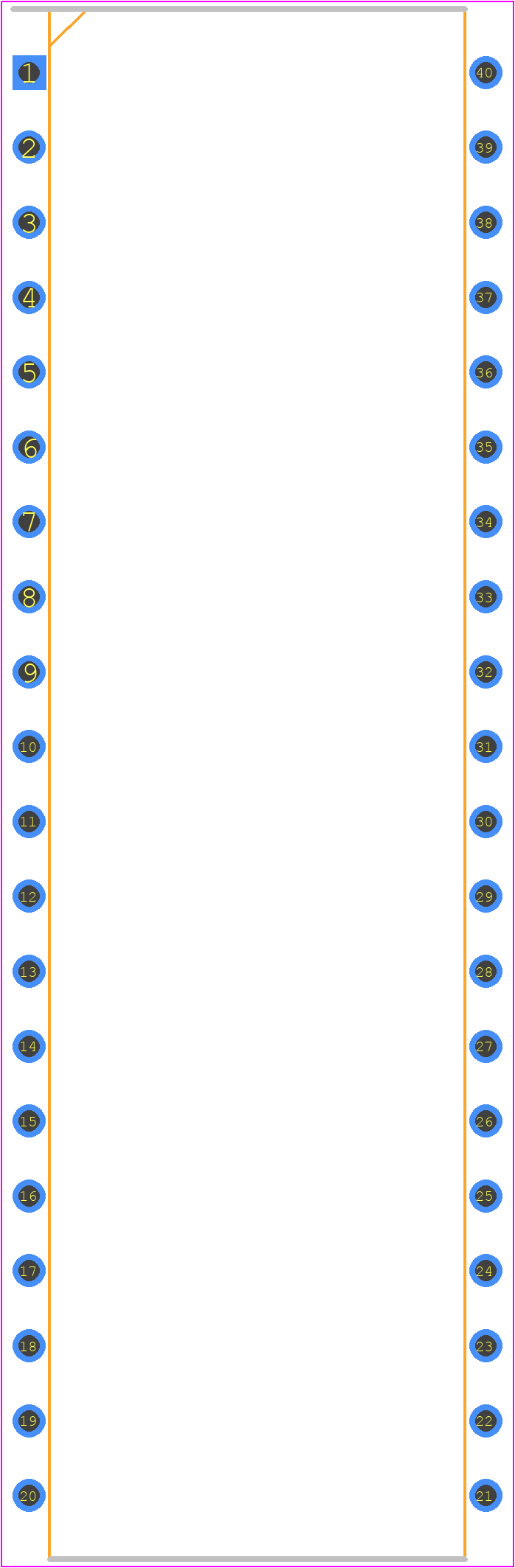

PCB Footprints
ICM7212AMIPL+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ICM7212AMIPL
click to zoom
3D Models
ICM7212AMIPL+ - Analog Devices - 3D model - Dual-In-Line Packages - ICM7212AMIPL
click to zoom

ICM7212AMIPL+ Details

  • Manufacturer Part Number:

    ICM7212AMIPL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-PDIP-600_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    COMMON-ANODE

  • Data Input Mode:

    PARALLEL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T40

  • JESD-609 Code:

    e3

  • Length:

    52.075 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Digits/Characters:

    4-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    7

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15.24 mm

ICM7212AMIPL+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ICM7212AMIPL+ involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, use short and direct traces for the analog signals, and avoid running digital signals near the analog signals.
  • Calibration of the ICM7212AMIPL+ involves adjusting the internal reference voltage and the gain of the device. This can be done by applying a known input voltage and adjusting the output voltage to match the expected value. The device also has a calibration mode that can be used to adjust the internal reference voltage.
  • The maximum input voltage that the ICM7212AMIPL+ can handle is ±16.5V, but it's recommended to keep the input voltage within the specified range of ±10V to ensure accurate readings and prevent damage to the device.
  • Common issues with the ICM7212AMIPL+ can be troubleshooted by checking the power supply voltage, ensuring proper grounding, and verifying the input signal integrity. Also, check for any layout or routing issues, and ensure that the device is operated within the specified temperature range.
  • The ICM7212AMIPL+ is rated for operation up to 125°C, but its accuracy and linearity may degrade at high temperatures. It's recommended to derate the device's performance at high temperatures and consider using a thermally-enhanced package or a different device specifically designed for high-temperature applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICM7212AMIPL+ Overview

Use the download button to access the ICM7212AMIPL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM72, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
