ICM7217AIPI+ - Analog Devices

Description: LED Display Drivers 4-Digit, Presettable, LED Up/Down Counter

Download ICM7217AIPI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

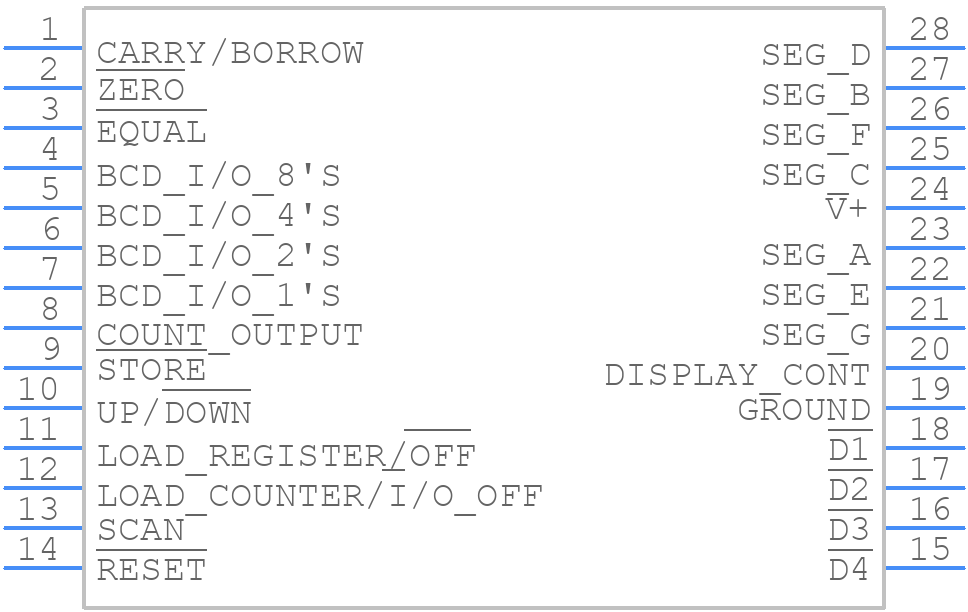

Symbol
ICM7217AIPI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

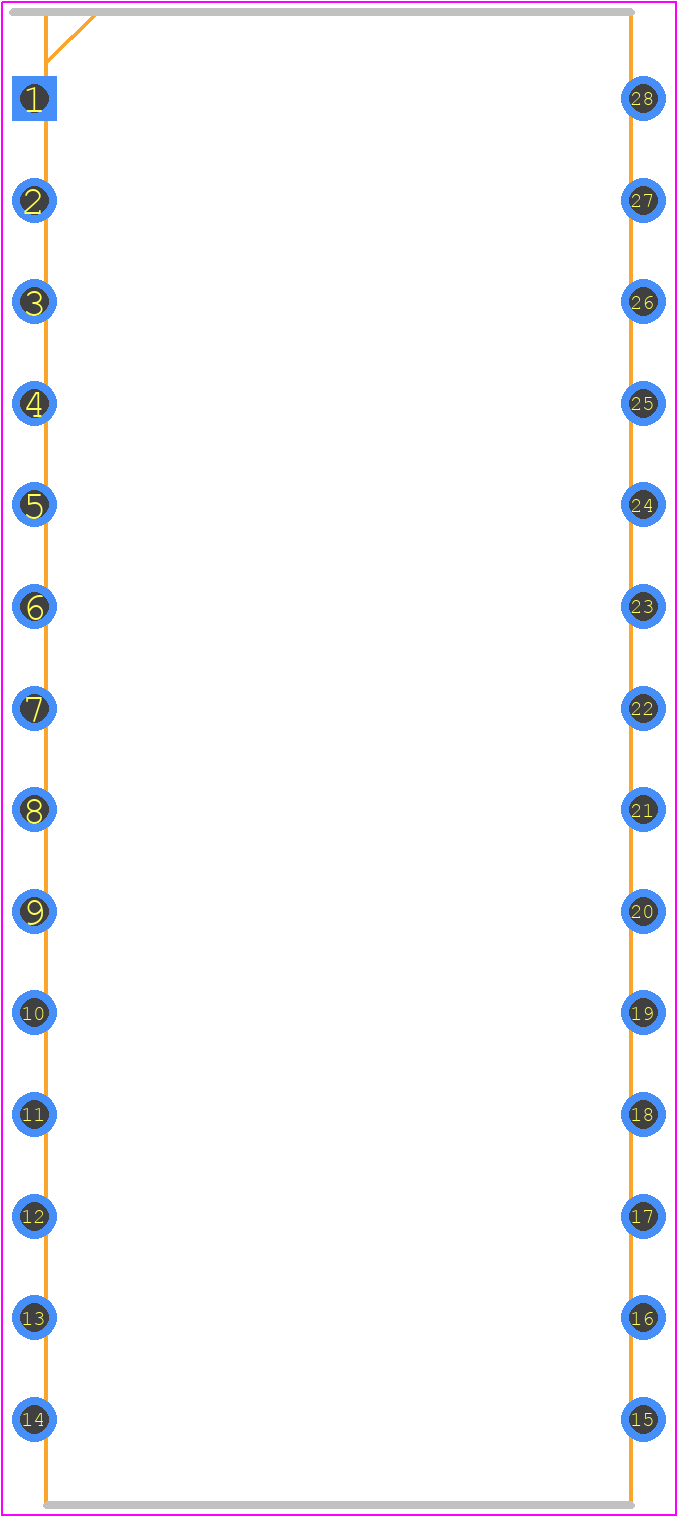

ICM7217AIPI+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28 PDIP-W
click to zoom
3D Models
ICM7217AIPI+ - Analog Devices - 3D model - Dual-In-Line Packages - 28 PDIP-W
click to zoom

ICM7217AIPI+ Details

  • Manufacturer Part Number:

    ICM7217AIPI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-PDIP-600_MIL

  • Package Description:

    PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1986-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    PARALLEL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.83 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    YES

  • Number of Digits/Characters:

    4-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    7

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.445 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15.24 mm

ICM7217AIPI+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ICM7217AIPI+ involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane and to route the analog signals away from the digital signals.
  • Calibration of the ICM7217AIPI+ involves adjusting the internal voltage reference and the gain of the device. This can be done by applying a known input voltage and adjusting the trim pins (TRIM1 and TRIM2) to achieve the desired output voltage. The device should be calibrated at the operating temperature range to ensure optimal performance.
  • The maximum input voltage that the ICM7217AIPI+ can handle is 15V, but it's recommended to keep the input voltage within the specified range of 0V to 12V to ensure accurate readings and prevent damage to the device.
  • Yes, the ICM7217AIPI+ can be used in a multiplexed configuration. This can be achieved by using an external multiplexer to switch between multiple input channels and connecting the output of the multiplexer to the input of the ICM7217AIPI+. The device can then be configured to read the output of the multiplexer and provide a digital output corresponding to the selected input channel.
  • The typical settling time of the ICM7217AIPI+ is around 100μs, but it can vary depending on the input voltage, output load, and other factors. The settling time affects the overall system performance by determining how quickly the device can respond to changes in the input voltage and provide an accurate digital output.
