ICM7217IPI+ - Analog Devices

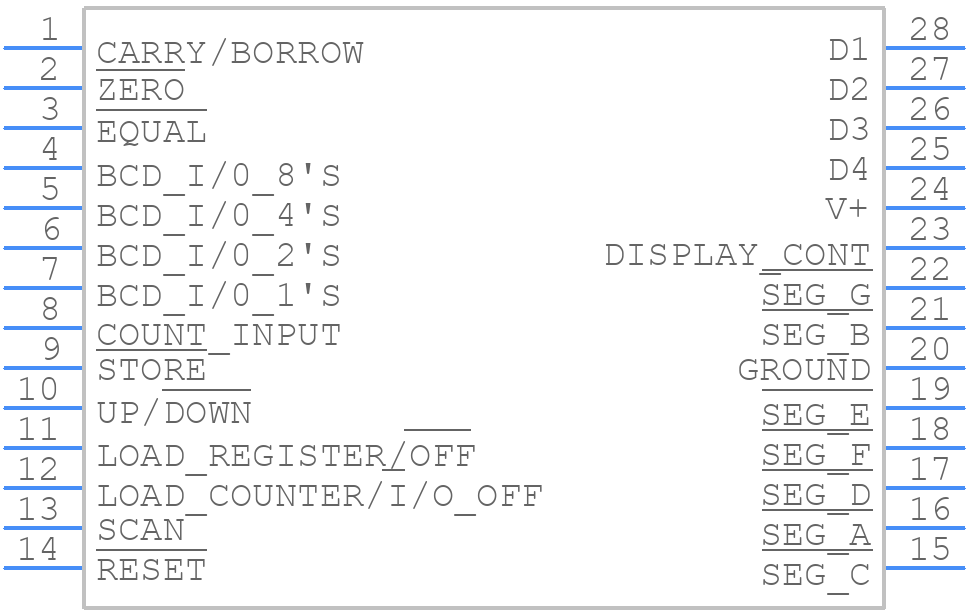

ICM7217IPI+ Details

• Manufacturer Part Number:

  ICM7217IPI+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

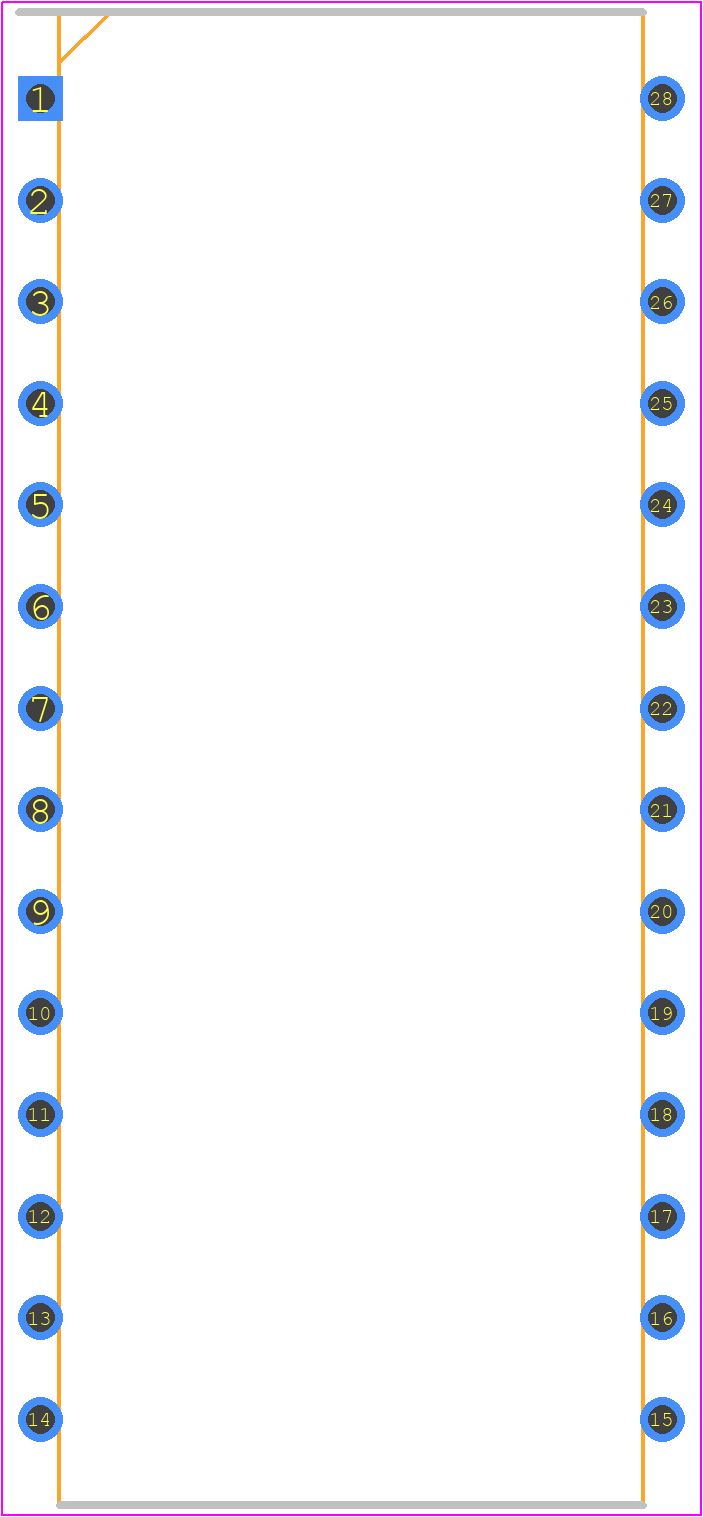

• Part Package Code:

  28-PDIP-600_MIL

• Package Description:

  PLASTIC, DIP-28

• Pin Count:

  28

• Manufacturer Package Code:

  28-PDIP-600_MIL

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1986-04-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Data Input Mode:

  PARALLEL

• Display Mode:

  SEGMENT

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDIP-T28

• JESD-609 Code:

  e3

• Length:

  36.83 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  YES

• Number of Digits/Characters:

  4-DIGIT

• Number of Functions:

  1

• Number of Segments:

  7

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP28,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.445 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  15.24 mm
