Description:The ICM7218 series of universal LED driver systems provide, in a single package, all the circuitry necessary to interface most common microprocessors or digital systems to an LED display. Included on-chip are an 8-byte static display memory, two types of 7-segment decoders, multiplex scan circuitry, and high current digit and segment drivers for either common cathode or common anode displays. The lCM7218A and 1CM7218B feature two control lines (WRITE and MODE) which write either 4 bits of control informatio
The recommended layout and routing for the ICM7218AIJIR5254 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The ICM7218AIJIR5254 requires a single 5V power supply, and it is recommended to use a low-dropout linear regulator to power the device. The power sequencing requirements involve powering up the device in the following order: VCC, then VREF, and finally the input voltage.
The ICM7218AIJIR5254 has a maximum junction temperature of 150°C, and it is recommended to keep the device temperature below 125°C for reliable operation. Thermal management considerations include using a heat sink, ensuring good airflow, and minimizing the thermal resistance between the device and the heat sink.
Common issues with the ICM7218AIJIR5254 can be troubleshooted by checking the power supply, ensuring proper grounding, and verifying the input voltage and frequency. Additionally, checking the layout and routing, and ensuring that the device is properly decoupled can help resolve issues.
The ICM7218AIJIR5254 is designed to meet the EMI and EMC requirements of various regulatory bodies, including the FCC and CE. To ensure compliance, it is recommended to use a shielded enclosure, minimize the length of the cables, and use EMI filters and shielding on the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICM7218AIJIR5254 Overview

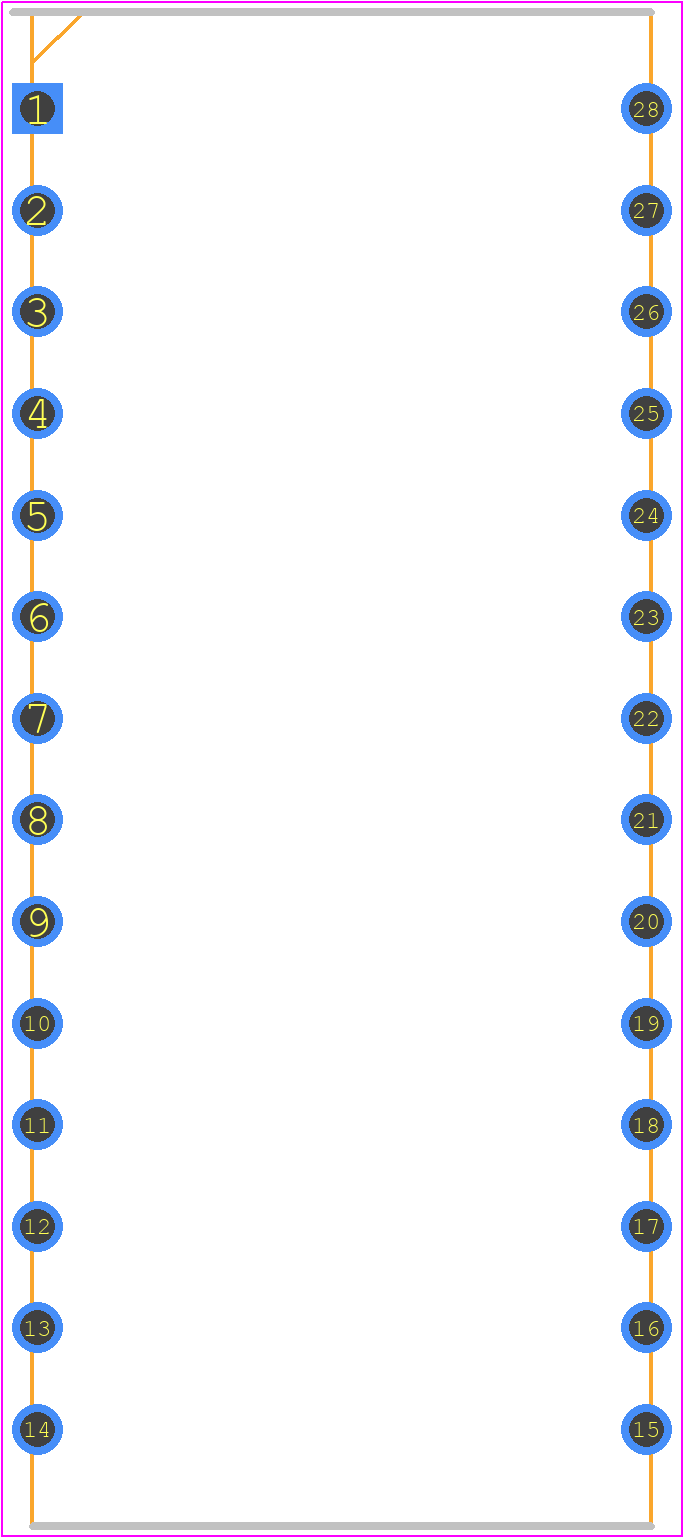

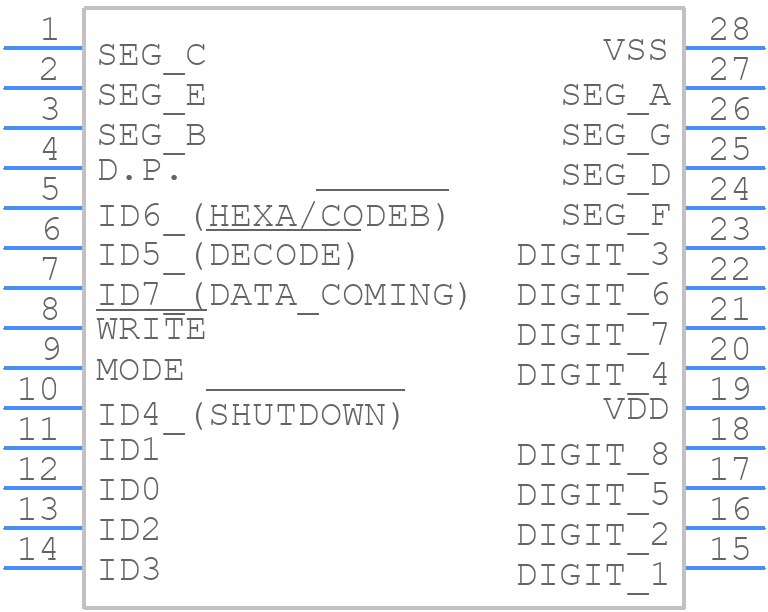

Use the download button to access the ICM7218AIJIR5254 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM72,
or try a keyword search, such as Display Drivers
