ICM7218AIPI+ - Analog Devices

Description: ICM7218AIPI+, LED Driver, 8-Digits 64-Segments, 2.5 V, 3.3 V, 5 V, 28-Pin PDIP

Download ICM7218AIPI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

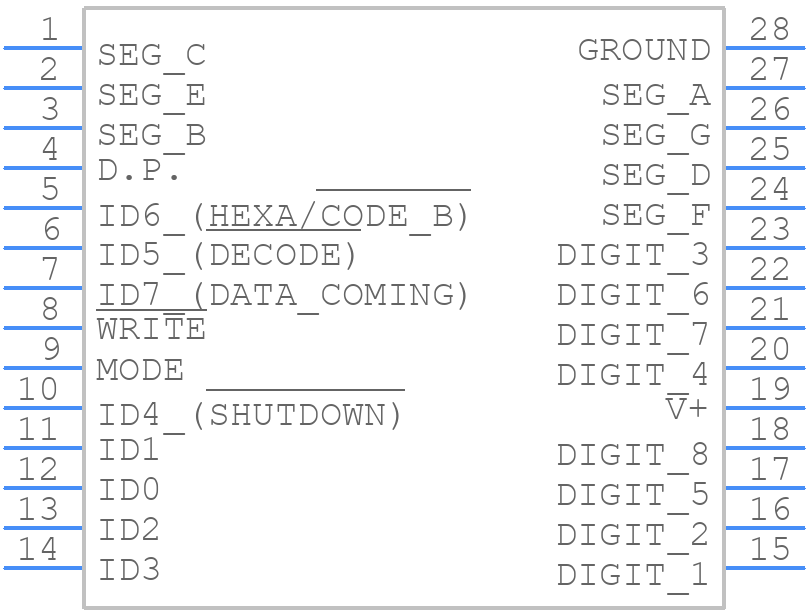

ICM7218AIPI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

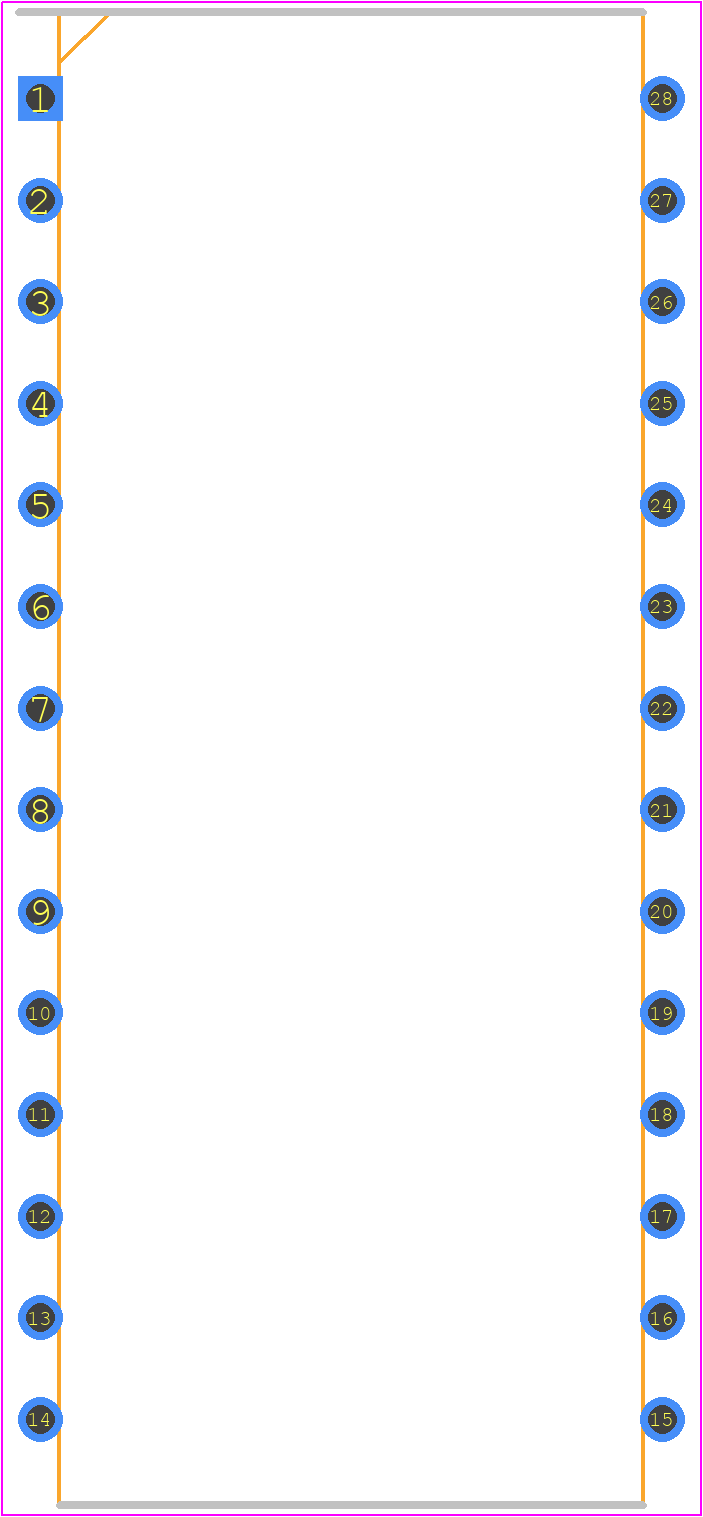

ICM7218AIPI+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P28+1-1
click to zoom
3D Models
ICM7218AIPI+ - Analog Devices - 3D model - Dual-In-Line Packages - P28+1-1
click to zoom

ICM7218AIPI+ Details

  • Manufacturer Part Number:

    ICM7218AIPI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-PDIP-600_MIL

  • Package Description:

    PLASTIC, DIP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-PDIP-600_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    COMMON-ANODE

  • Data Input Mode:

    PARALLEL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e3

  • Length:

    36.83 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    YES

  • Number of Digits/Characters:

    8-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.445 mm

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15.24 mm

ICM7218AIPI+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the ICM7218AIPI+ involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane and to route the analog signals away from the digital signals.
  • Calibration of the ICM7218AIPI+ involves adjusting the internal voltage reference and the gain of the device. This can be done by applying a known input voltage and adjusting the trim pins (TRIM1 and TRIM2) to achieve the desired output. The datasheet provides a detailed calibration procedure.
  • The ICM7218AIPI+ can handle input voltages up to 40V, but it's recommended to limit the input voltage to 30V to ensure reliable operation and to prevent damage to the device.
  • The ICM7218AIPI+ is rated for operation up to 125°C, but its accuracy and linearity may degrade at high temperatures. It's recommended to derate the device's performance at high temperatures and to consider using a thermally-enhanced package or a heat sink to maintain a safe operating temperature.
  • Common issues with the ICM7218AIPI+ can be troubleshooted by checking the power supply, ensuring proper grounding, and verifying the input voltage and frequency. Additionally, checking the device's output for oscillations or noise can help identify the root cause of the issue. The datasheet provides a troubleshooting guide and application notes that can be helpful in resolving common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICM7218AIPI+ Overview

Use the download button to access the ICM7218AIPI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM72, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
