Description:The ICM7218 series of universal LED driver systems provide, in a single package, all the circuitry necessary to interface most common microprocessors or digital systems to an LED display. Included on-chip are an 8-byte static display memory, two types of 7-segment decoders, multiplex scan circuitry, and high current digit and segment drivers for either common cathode or common anode displays. The lCM7218A and 1CM7218B feature two control lines (WRITE and MODE) which write either 4 bits of control informatio
A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the power supply lines away from the analog signals. Additionally, use a low-ESR capacitor for decoupling and place it close to the power pin.
The ICM7218BIJI requires a power-on reset (POR) circuit to ensure proper initialization. A simple POR circuit can be implemented using a resistor, capacitor, and diode. The datasheet provides a recommended POR circuit diagram.
The ICM7218BIJI can use an external clock source or an internal oscillator. For an external clock source, use a high-quality crystal oscillator or a clock generator module. For internal oscillator, use a high-quality capacitor and resistor to ensure stability.
The ICM7218BIJI has a 3-wire serial interface (SCL, SDA, and INT) that can be connected to a microcontroller or FPGA. Use a level shifter if the voltage levels are different. Ensure proper signal termination and use a pull-up resistor on the SDA line.
The ICM7218BIJI has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and avoid blocking airflow around the device. Reduce power consumption and clock frequency to minimize heat generation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICM7218BIJI Overview

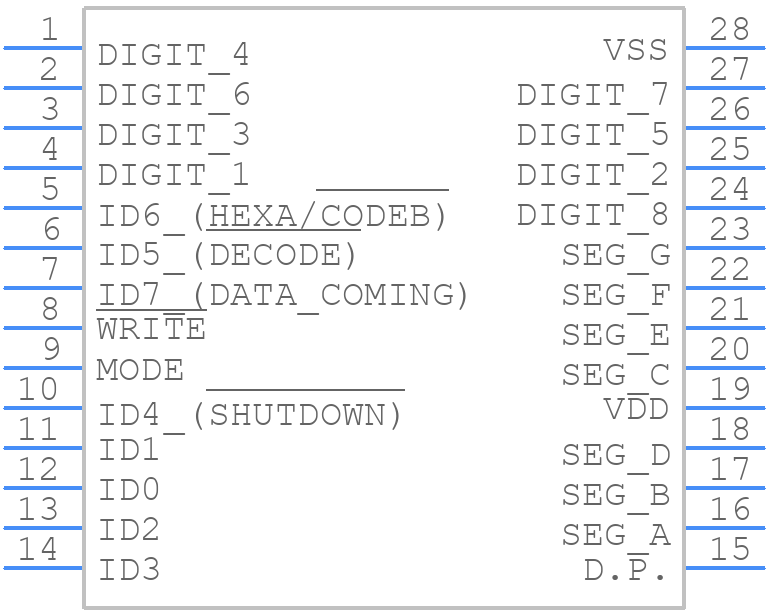

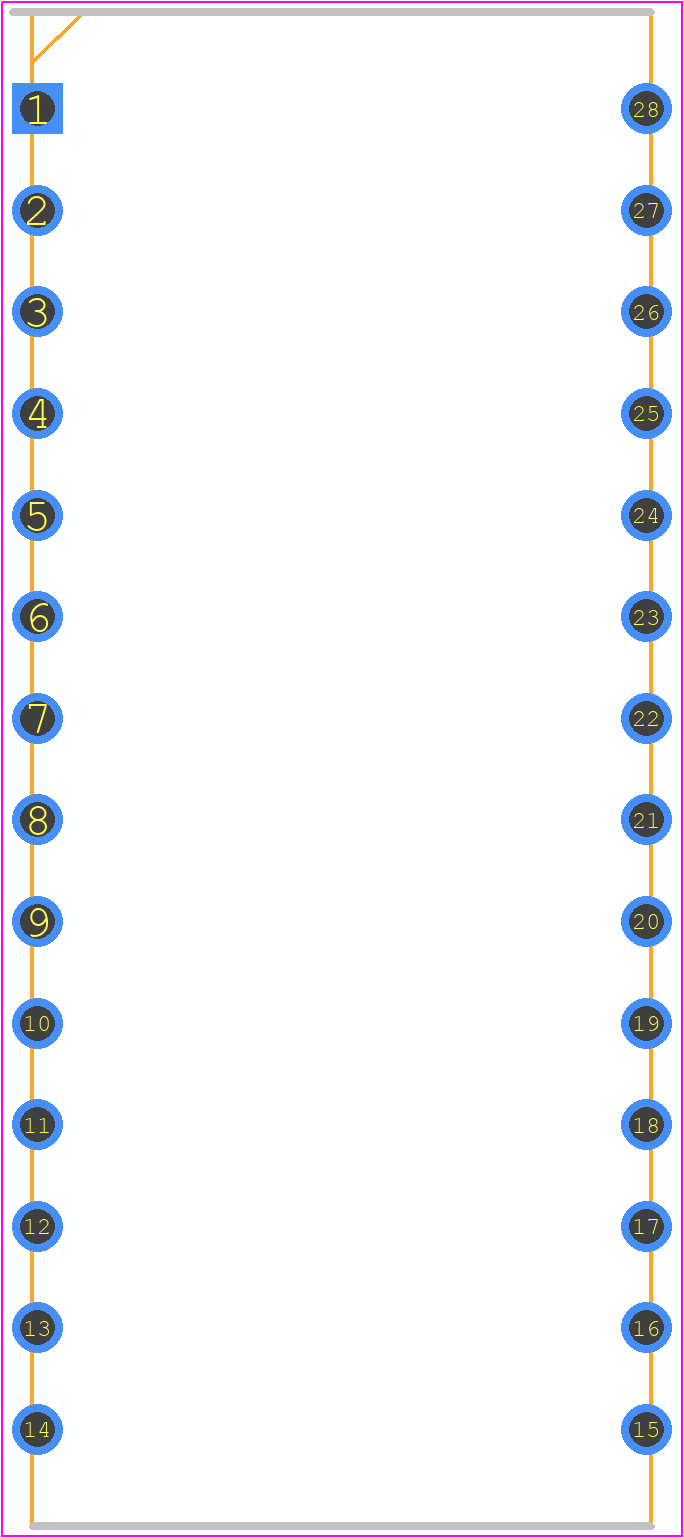

Use the download button to access the ICM7218BIJI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM72,
or try a keyword search, such as Display Drivers
