ICM7243AIPLZ - Renesas Electronics

Description: LED Display Drivers W/ANNEAL 40 -20 + 85 LED 8 CHAR DISP

Download ICM7243AIPLZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ICM7243AIPLZ model

Email notifications will be applied after download.

Send part feedback

Symbol

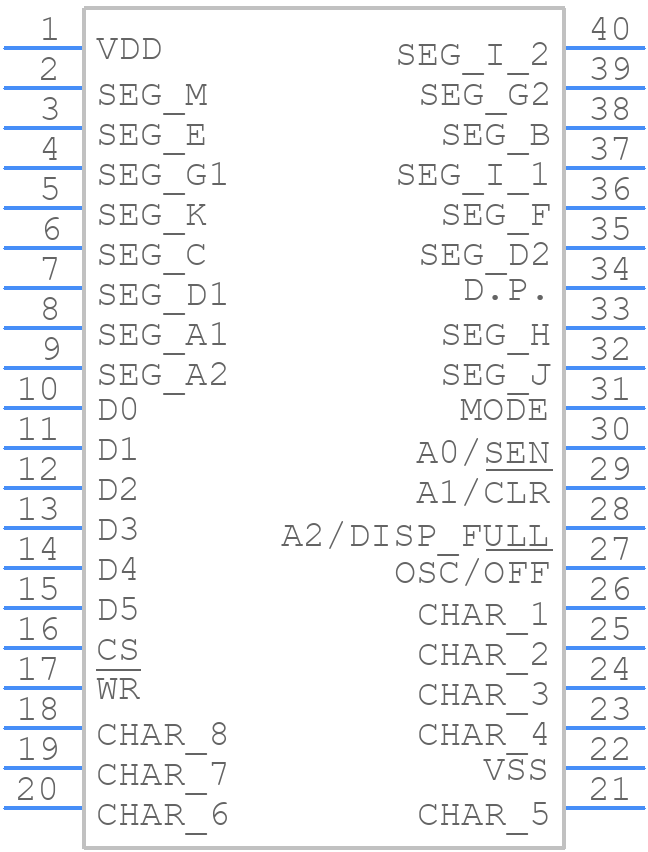

ICM7243AIPLZ - Renesas Electronics - PCB symbol

PCB Footprints

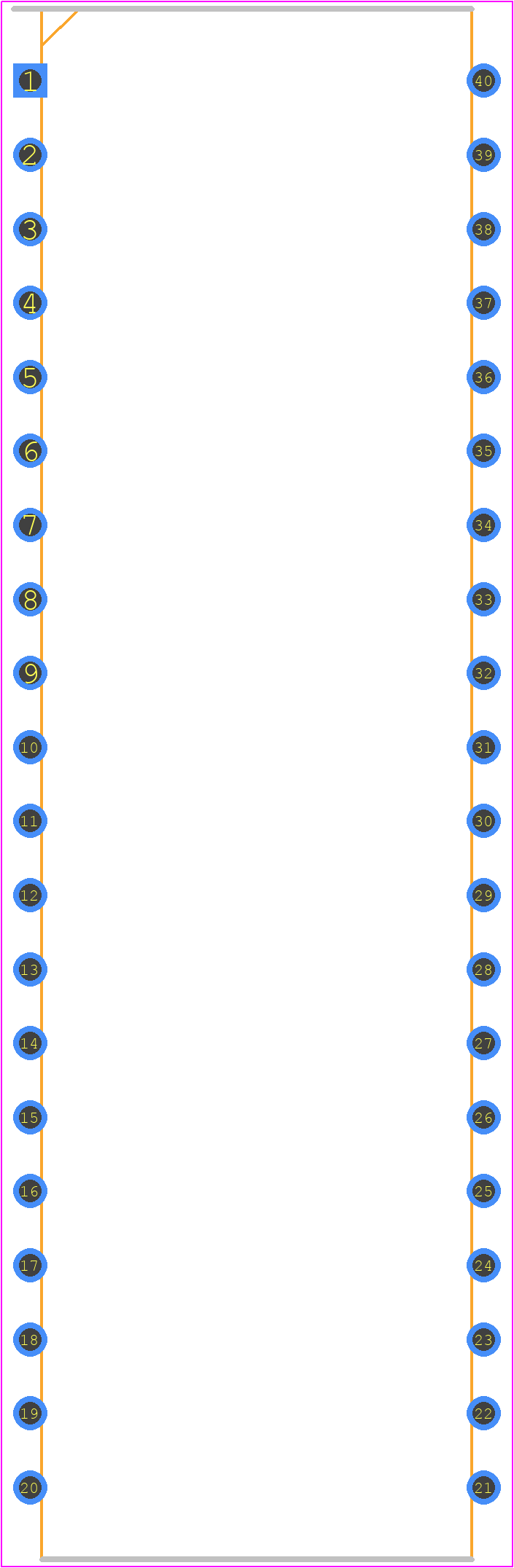

ICM7243AIPLZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E40.6 (JEDEC MS-011-AC ISSUE B)

3D Models

ICM7243AIPLZ - Renesas Electronics - 3D model - Dual-In-Line Packages - E40.6 (JEDEC MS-011-AC ISSUE B)

Datasheet Download Datasheet
Stock & Prices Price & Stock for ICM7243AIPLZ
Part Number ICM7243AIPLZ
Manufacturer Renesas Electronics
Pin Count 40
Part Category Undefined or Miscellaneous
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - E40.6 (JEDEC MS-011-AC ISSUE B)
Released Date Mar 27, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ICM7243AIPLZ Details

Manufacturer Part Number:
ICM7243AIPLZ
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
JESD-609 Code:
e3
Terminal Finish:
Matte Tin (Sn) - annealed
