Description:Support is limited to customers who have already adopted these products.The ICM7244 is an 8-character, alphanumeric display driver and controller which provides all the circuitry required to interface a microprocessor or digital system to a 16-segment display with internal pull-up resistors. It is primarily intended for use in microprocessor systems, where it minimizes hardware and software overhead. Incorporated on-chip are a 64-character ASClI decoder, 8x6 memory, high power character and segment drivers,
The recommended operating temperature range for the ICM7244AIM44Z is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
To ensure proper power and decoupling, follow these guidelines: use a stable power supply with a low ripple voltage, decouple the power pins with 0.1uF and 10uF capacitors, and place the capacitors as close to the power pins as possible. Additionally, use a 1uF capacitor between the VCC and GND pins to filter out high-frequency noise.
The ICM7244AIM44Z can operate at clock frequencies up to 40 MHz. However, the maximum clock frequency may vary depending on the specific application, board layout, and environmental conditions. It's recommended to consult the datasheet and application notes for more information.
To configure the ICM7244AIM44Z for low-power operation, follow these steps: set the clock frequency to the lowest required value, enable the power-down mode when not in use, and minimize the number of active peripherals. Additionally, consider using the device's built-in power-saving features, such as the idle mode and sleep mode.
The ICM7244AIM44Z is a member of the RL78 family of microcontrollers, which offers a range of devices with varying features and peripherals. The key differences between the ICM7244AIM44Z and other similar devices lie in the number of peripherals, memory size, and package options. Engineers should consult the datasheet and product selection guides to determine the most suitable device for their specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICM7244AIM44Z Overview

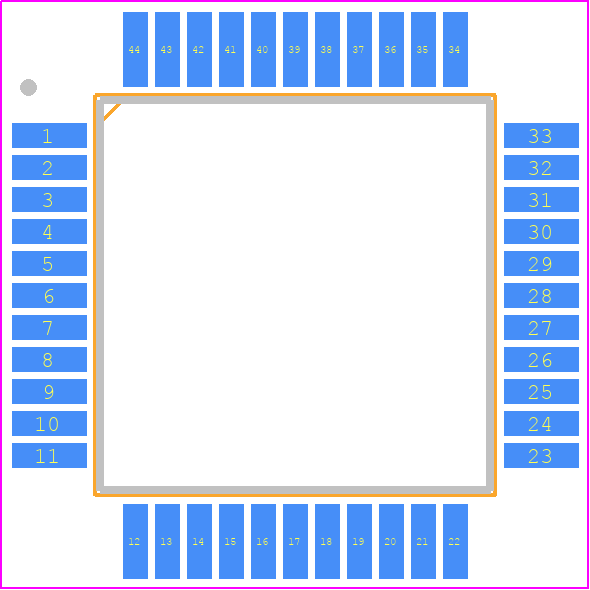

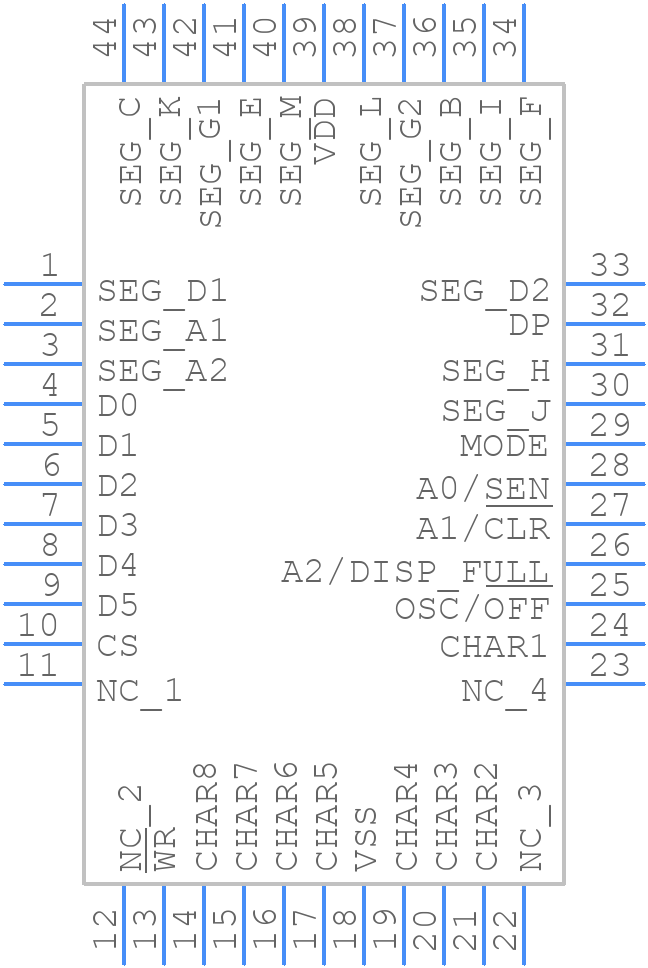

Use the download button to access the ICM7244AIM44Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM72,
or try a keyword search, such as Display Drivers
