ICM7555MJA/HR - Analog Devices

Description: Timers & Support Products ICM7555MJA/HR

Download ICM7555MJA/HR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

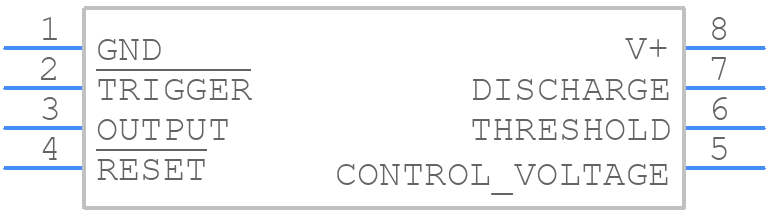

Symbol
ICM7555MJA/HR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ICM7555MJA/HR - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J8-2
click to zoom

ICM7555MJA/HR Details

  • Manufacturer Part Number:

    ICM7555MJA/HR

  • Brand Name:

    Analog Devices Inc

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-CERDIP-300_MIL

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-CERDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    TIMER

  • JESD-30 Code:

    R-GDIP-T8

  • JESD-609 Code:

    e0

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Frequency-Max:

    0.5 MHz

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B (Modified)

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ICM7555MJA/HR Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the ICM7555MJA/HR is typically around 1 MHz, but it can be as high as 2 MHz with proper design and layout considerations.
  • To ensure stable operation in noisy environments, it is recommended to use a decoupling capacitor (e.g. 0.1 uF) between VCC and GND, and to keep the timer IC away from high-current switching devices. Additionally, using a shielded enclosure and minimizing lead lengths can also help reduce noise susceptibility.
  • Yes, the ICM7555MJA/HR can be used as a crystal oscillator, but it requires an external crystal and capacitors to form a Pierce oscillator circuit. The recommended crystal frequency range is between 1 kHz and 100 kHz.
  • The minimum supply voltage for the ICM7555MJA/HR is 2V, and the maximum supply voltage is 18V. However, it is recommended to operate the device within the 5V to 15V range for optimal performance.
  • The timing period for the ICM7555MJA/HR can be calculated using the formula: T = 1.38 * R * C, where R is the resistance value in ohms and C is the capacitance value in farads. This formula assumes a standard 555 timer configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICM7555MJA/HR Overview

Use the download button to access the ICM7555MJA/HR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ICM75, or try a keyword search, such as Analog Waveform Generation Functions
